Management Software and Moduls

iConverter NMM

Management Software





S NetOutlook NMP Management Software


NetOutlook ist eine SNMP-basierte Software für das Management grafischer Elemente auf Windows-Desktops. Es bietet Echtzeit-Management, Statusüberwachung und Konfigurationskontrolle für ein oder mehrere iConverter-Chassis und Module. NetOutlook bietet sichere, Carrier-Grade-Netzwerk-Managementdienste für Metro-Ethernet- und Unternehmensnetze.



NetOutlook SNMP.pdf
PDF-Dokument [669.1 KB]

Network Interface Devices

iConverter GM3

SFP zu SFP oder 10/100/1000 UTP zu 1000BASE-X, SFP oder redundanten SFPs. Mehrdienst-Netzschnittstellengerät mit End-to-End-IEEE-802.3ah- und 802.1ag-Leistungsüberwachung


Der iConverter GM3 ist ein flexibles und kostengünstiges Netzschnittstellengerät (NID). Der GM3 kann als Transport-NID oder Dienst-NID betrieben werden, um interne und externe Ethernet-Dienstprogramme voneinander abzugrenzen.



iConverter GM3 Network Interface.pdf
PDF-Dokument [841.4 KB]

iConverter GX/TM2

10/100/1000 T UTP to 1000X Fiber VLAN Ethernet Media Converter and Network Interface Device with Integrated Management and Enhanced Features


The iConverter GX/TM2 conforms to the Ethernet in the First Mile (EFM) fiber standards to support Fiber-to-the-X Metropolitan and Enterprise LAN networks. The GX/TM2 provides intelligent, securely managed service demarcation at the customer premises, offering Quality of Service and enhanced Bandwidth Control (rate-limiting) capabilities. The GX/TM2 features built-in Operations, Administration and Maintenance (OAM) with comprehensive performance monitoring, fault detection and provisioning.



iConverter GX TM2.pdf
PDF-Dokument [394.5 KB]

iConverter GX/TM

10/100/1000 T UTP to 1000X Fiber VLAN Ethernet Media Converter and Network Interface Device with Integrated Management



The iConverter GX/TM conforms to the Ethernet in the First Mile (EFM) standards to support Fiber-to-the-X Metropolitan and Enterprise LAN networks. The GX/TM provides intelligent, securely managed service demarcation at the customer premises, offering Quality of Service capabilities. The GX/TM features built-in Operations, Administration and Maintenance (OAM) management with comprehensive monitoring, fault detection and provisioning.



iConverter GX TM.pdf
PDF-Dokument [409.6 KB]

iConverter 10/100M2

10/100T UTP to 100Fx Fiber VLAN Ethernet Media Converter and Network Interface Device with Integrated Management and Enhanced Features


The iConverter® 10/100M2 conforms to the Ethernet in the First Mile (EFM) fiber standards to support Fiber-to-the-X Metropolitan and Enterprise LAN networks. The 10/100M2 provides intelligent, securely managed service demarcation at the customer premises, offering Layer 2 Control Protocol (L2CP) policy control, Quality of Service and enhanced Bandwidth Control (rate-limiting) capabilities. The 10/100M2 features built-in Operations, Administration and Maintenance (OAM) with comprehensive performance monitoring, fault detection and provisioning.



iConverter 10 100M2.pdf
PDF-Dokument [398.2 KB]

iConverter 10/100M

10/100T UTP to 100Fx Fiber VLAN Ethernet Media Converter and Network Interface Device with Integrated Management



The iConverter 10/100M conforms to the Ethernet in the First Mile (EFM) fiber standards to support Fiber-to-the-X Metropolitan and Enterprise LAN networks. The 10/100M provides intelligent, securely managed service demarcation at the customer premises, offering Quality of Service and Bandwidth Control (rate-limiting) capabilities. The 10/100M features built-in Operations, Administration and Maintenance (OAM) with comprehensive performance monitoring, fault detection and provisioning.



iConverter 10 100M.pdf
PDF-Dokument [385.4 KB]

iConverter 2GXM2

1000X to 1000X Fiber VLAN Switch, Ethernet Fiber Converter and Network Interface Device with Integrated Management and Enhanced Features


The iConverter 2GXM2 conforms to the Ethernet in the First Mile (EFM) fiber standards to support Fiber-to-the-X Metropolitan and Enterprise LAN networks. The 2GXM2 provides intelligent, securely managed service demarcation at the customer premises, offering Quality of Service and enhanced Bandwidth Control (ratelimiting) capabilities. The 2GXM2 features built-in Operations, Administration and Maintenance (OAM) with comprehensive performance monitoring, fault detection and provisioning.



iConverter 2GXM2.pdf
PDF-Dokument [375.6 KB]

iConverter 2GXM

1000X to 1000X Fiber VLAN Switch, Ethernet Fiber Converter and Network Interface Device with Integrated Management


The iConverter 2GXM conforms to the Ethernet in the First Mile (EFM) standards to support Fiber-to-the-X Metropolitan and Enterprise LAN networks. The 2GXM provides intelligent, securely managed service demarcation at the customer premises, offering Quality of Service capabilities. The 2GXM features built-in Operations, Administration and Maintenance (OAM) with comprehensive performance monitoring, fault detection and provisioning.

.

iConverter 2GXM.pdf
PDF-Dokument [398.2 KB]

iConverter 2FXM2

100Base-Fx to 100Base-Fx Fiber VLAN Switch, Ethernet Fiber Converter and Network Interface Device with Integrated Management and Enhanced Features


The iConverter 2FXM2 conforms to the Ethernet in the First Mile (EFM) standards to support Fiber-to-the-X Metropolitan and Enterprise LAN networks. The 2FXM2 provides intelligent, securely managed service demarcation at the customer premises, offering Quality of Service and Bandwidth Control (rate-limiting) capabilities. The 2FXM2 features built-in Operations, Administration and Maintenance (OAM) management with comprehensive monitoring, fault detection and provisioning.



iConverter 2FXM2.pdf
PDF-Dokument [385.1 KB]

iConverter 2FXM

100Base-Fx to 100Base-Fx Fiber VLAN Switch, Ethernet Fiber Converter and Network Interface Device with Integrated Management


The iConverter 2FXM conforms to the Ethernet in the First Mile (EFM) standards to support Fiber-to-the-X Metropolitan and Enterprise LAN networks. The 2FXM provides intelligent, securely managed service demarcation at the customer premises, offering Quality of Service and Bandwidth Control (rate-limiting) capabilities. The 2FXM features built-in Operations, Administration and Maintenance (OAM) management with comprehensive monitoring, fault detection and provisioning.



iConverter 2FXM.pdf
PDF-Dokument [384.4 KB]

CWDM Multiplexers/Demultiplexers and Add/Drop Multiplexers

iConverter CWDM/X

4 and 8 Channel Optical Multiplexer/Demultiplexers


Omnitron’s iConverter CWDM/X Coarse Wave Division Multiplexing (CWDM) Multiplexer/Demultiplexer (MUX/DEMUX) modules support ITU-T G694.2 wavelengths between 1270nm to 1610nm in 20nm increments. iConverter CWDM/X modules are protocol and rate transparent allowing different services up to 10Gbps to be transported across the same fiber link.



iConverter CWDM X.pdf
PDF-Dokument [1.3 MB]

iConverter Single-Fiber CWDM/X

4 and 8 Channel Single-Fiber Optical Multiplexer/Demultiplexers


iConverter Single-Fiber Course Wave Division Multiplexing (CWDM) modules provide a flexible and cost effective solution for increasing fiber capacity over single fiber networks. CWDM over single-fiber increases network bandwidth capacity by enabling multiple wavelengths, or data channels that carry independent services over existing fiber infrastructure. Up to sixteen separate wavelengths can be transported on a single-fiber link with iConverter Single-Fiber CWDM modules.



iConverter CWDM X.pdf
PDF-Dokument [1.3 MB]

iConverter CWDM/AD

1 and 2 Channel Optical Add/Drop Multiplexers


iConverter CWDM/AD modules can be installed in any iConverter chassis equipped with other iConverter media converters and transponders to provide a multi-service platform capable of delivering Ethernet, TDM, SONET and other services across a CWDM fiber common link.



iConverter CWDM AD.pdf
PDF-Dokument [1'018.7 KB]

iConverter Single-Fiber CWDM/AD

1 Channel Single-Fiber Optical Add/Drop Multiplexers


iConverter Single-Fiber Course Wave Division Multiplexing (CWDM) modules provide a flexible and cost effective solution for increasing fiber capacity over single fiber networks. CWDM over single-fiber increases network bandwidth capacity by enabling multiple wavelengths, or data channels that carry independent services over existing fiber infrastructure. Up to sixteen separate wavelengths can be transported on a single-fiber link with iConverter Single-Fiber CWDM modules.



iConverter CWDM AD.pdf
PDF-Dokument [1'018.7 KB]

T1/E1 Multiplexers

iConverter 4xT1/E1 MUX

Up to four T1/E1 UTP ports and one optional 10/100 Ethernet UTP port multiplexed over fiber


The iConverter 4xT1/E1 MUX multiplexes up to four T1/E1 copper circuits and one optional 10/100 Ethernet UTP port onto a fiber optic link. The aggregated services can be extended up to 120km across a fiber pair or up to 40km across a single fiber link.



iConverter 4xT1-E1 MUX.pdf
PDF-Dokument [799.1 KB]

iConverter XG

10 Gigabit Protocol-Transparent Fiber Media Converter supporting any combination SFP+ or XFP transceivers


The iConverter XG is a 10 Gigabit, protocol-transparent media converter with two pluggable transceiver ports. The iConverter XG can be used as a copper-to-fiber converter, a fiber mode converter, a WDM transponder or a fiber repeater supporting the three Rs (regeneration, retiming and reshaping).



iConverter XG.pdf
PDF-Dokument [698.2 KB]

iConverter xFF

SFP to SFP Managed Protocol-Transparent Fiber Converter


The iConverter xFF is a protocol-transparent media converter that provides reliable and cost-effective conversion between different wavelengths, multimode and single-mode, and dual and single-fiber.



iConverter xFF.pdf
PDF-Dokument [201.3 KB]

iConverter GX/TM2

10/100/1000 T UTP to 1000X Fiber VLAN Ethernet Media Converter and Network Interface Device with Integrated Management and Enhanced Features


The iConverter GX/TM2 conforms to the Ethernet in the First Mile (EFM) fiber standards to support Fiber-to-the-X Metropolitan and Enterprise LAN networks. The GX/TM2 provides intelligent, securely managed service demarcation at the customer premises, offering Quality of Service and enhanced Bandwidth Control (rate-limiting) capabilities. The GX/TM2 features built-in Operations, Administration and Maintenance (OAM) with comprehensive performance monitoring, fault detection and provisioning.



iConverter GX-TM2.pdf
PDF-Dokument [381.7 KB]

iConverter GX/TM

10/100/1000 T UTP to 1000X Fiber VLAN Ethernet Media Converter and Network Interface Device with Integrated Management


The iConverter GX/TM conforms to the Ethernet in the First Mile (EFM) standards to support Fiber-to-the-X Metropolitan and Enterprise LAN networks. The GX/TM provides intelligent, securely managed service demarcation at the customer premises, offering Quality of Service capabilities. The GX/TM features built-in Operations, Administration and Maintenance (OAM) management with comprehensive monitoring, fault detection and provisioning.



iConverter GX-TM.pdf
PDF-Dokument [398.8 KB]

iConverter GX/T

10/100/1000 T UTP to 1000X Fiber VLAN Ethernet Media Converter


The iConverter GX/T media converters are members of the modular iConverter product family. The GX/T provides 10/100/1000 UTP copper to GigE fiber conversion and can be used in a managed or unmanaged fashion.



iConverter GX-T.pdf
PDF-Dokument [197.2 KB]

iConverter Gx

1000Base-T UTP to 1000X Fiber Media Converter


The iConverter Gx managed media converters are members of the modular iConverter product family, and provide 1000BASE-T UTP to 1000BASE-X fiber conversion.



iConverter Gx.pdf
PDF-Dokument [259.9 KB]

iConverter Gx AN

1000BASE-T to 1000BASE-SX/LX Managed Media Converter


The iConverter Gx AN Media Converter is a managed media converter that provides 1000BASE-T UTP to 1000BASE-X fiber conversion between Gigabit networking devices.



iConverter Gx AN.pdf
PDF-Dokument [265.8 KB]

iConverter 10/100M2

10/100 T UTP to 100Fx Fiber VLAN Ethernet Media Converter and Network Interface Device with Integrated Management and Enhanced Features


The iConverter® 10/100M2 conforms to the Ethernet in the First Mile (EFM) fiber standards to support Fiber-to-the-X Metropolitan and Enterprise LAN networks. The 10/100M2 provides intelligent, securely managed service demarcation at the customer premises, offering Layer 2 Control Protocol (L2CP) policy control, Quality of Service and enhanced Bandwidth Control (rate-limiting) capabilities. The 10/100M2 features built-in Operations, Administration and Maintenance (OAM) with comprehensive performance monitoring, fault detection and provisioning.



iConverter 10-100M2.pdf
PDF-Dokument [385.4 KB]

iConverter 10/100M

10/100 T UTP to 100Fx Fiber VLAN Ethernet Media Converter and Network Interface Device with Integrated Management


The iConverter 10/100M conforms to the Ethernet in the First Mile (EFM) fiber standards to support Fiber-to-the-X Metropolitan and Enterprise LAN networks. The 10/100M provides intelligent, securely managed service demarcation at the customer premises, offering Quality of Service and Bandwidth Control (rate-limiting) capabilities. The 10/100M features built-in Operations, Administration and Maintenance (OAM) with comprehensive performance monitoring, fault detection and provisioning.



iConverter 10-100M.pdf
PDF-Dokument [417.1 KB]

iConverter 10/100VT

10/100 T UTP to 100Fx Fiber VLAN Ethernet Media Converter


The iConverter 10/100VT managed media converters are members of the modular iConverter product family, and provide UTP to Fiber conversion as well as 10/100 UTP rate conversion.



iConverter 10-100VT.pdf
PDF-Dokument [211.8 KB]

iConverter 10/100

10/100 T UTP to 100Fx Fiber Ethernet Media Converter


The iConverter 10/100 managed media converters are members of the modular iConverter product family, and provide 10BASE-T or 100BASE-TX to 100BASE-FX fiber conversion.



iConverter 10-100.pdf
PDF-Dokument [300.4 KB]

iConverter 100Fx/Tx

100Base-Tx UTP to 100Base-Fx Fiber Ethernet Media Converter


The iConverter 100Fx/Tx managed media converters are members of the modular iConverter product family, and provide 100BASE-TX UTP to 100BASE-FX fiber conversion.



iConverter 100Fx Tx.pdf
PDF-Dokument [263.7 KB]

iConverter 10FL/T

10Base-T UTP to 10Base-FL Fiber Media Converters


The iConverter 10FL/T managed media converters are members of the modular iConverter product family, and provide 10BASE-T UTP to 10BASE-FL fiber conversion.



iConverter 10FL-T.pdf
PDF-Dokument [288.1 KB]

iConverter XG

10 Gigabit Protocol-Transparent Fiber Media Converter supporting any combination SFP+ or XFP transceivers


The iConverter XG is a 10 Gigabit, protocol-transparent media converter with two pluggable transceiver ports. The iConverter XG can be used as a copper-to-fiber converter, a fiber mode converter, a WDM transponder or a fiber repeater supporting the three Rs (regeneration, retiming and reshaping).



iConverter XG.pdf
PDF-Dokument [698.2 KB]

iConverter xFF

SFP to SFP Managed Protocol-Transparent Fiber Converter


The iConverter xFF is a protocol-transparent media converter that provides reliable and cost-effective conversion between different wavelengths, multimode and single-mode, and dual and single-fiber.



iConverter xFF.pdf
PDF-Dokument [202.6 KB]

iConverter 2GXM2

1000X to 1000X Fiber VLAN Switch, Ethernet Fiber Converter and Network Interface Device with Integrated Management and Enhanced Features


The iConverter 2GXM2 conforms to the Ethernet in the First Mile (EFM) fiber standards to support Fiber-to-the-X Metropolitan and Enterprise LAN networks. The 2GXM2 provides intelligent, securely managed service demarcation at the customer premises, offering Quality of Service and enhanced Bandwidth Control (ratelimiting) capabilities. The 2GXM2 features built-in Operations, Administration and Maintenance (OAM) with comprehensive performance monitoring, fault detection and provisioning.



iConverter 2GXM2.pdf
PDF-Dokument [388.6 KB]

iConverter 2GXM

1000X to 1000X Fiber VLAN Switch, Ethernet Fiber Converter and Network Interface Device with Integrated Management


The iConverter 2GXM conforms to the Ethernet in the First Mile (EFM) standards to support Fiber-to-the-X Metropolitan and Enterprise LAN networks. The 2GXM provides intelligent, securely managed service demarcation at the customer premises, offering Quality of Service capabilities. The 2GXM features built-in Operations, Administration and Maintenance (OAM) with comprehensive performance monitoring, fault detection and provisioning.



iConverter 2GXM.pdf
PDF-Dokument [411.1 KB]

iConverter GX/X

1000X to 1000X Fiber VLAN Switch and Ethernet Fiber Converter


The iConverter GX/X managed two-port Gigabit Ethernet switch and media converter is a member of the modular iConverter product family. The GX/X provides single-mode to multimode fiber conversion for extending network distances up to 80km by connecting multimode fiber network devices over single-mode fiber cabling. The GX/X also functions as a repeater, regenerating and re-timing the fiber optic signal. Multiple GX/X can be cascaded to extend total network distances.



iConverter GX-X.pdf
PDF-Dokument [244.5 KB]

iConverter GX/F

1000X to 100Fx Fiber VLAN Switch and Ethernet Fiber Converter


The iConverter GX/F managed media converter is a member of the modular iConverter product family. The GX/F provides single-mode to multimode fiber conversion and rate conversion between 1000BASE-X and 100BASE-FX.



iConverter GX-F.pdf
PDF-Dokument [279.0 KB]

iConverter 1000FF

1000X Ethernet Fiber Converter


The iConverter 1000FF managed media converter is a member of the modular iConverter product family. The 1000FF provides single-mode to multimode fiber conversion and is a cost-effective solution to extending network distances by connecting multimode fiber network devices over single-mode fiber cabling.



iConverter 1000FF.pdf
PDF-Dokument [294.4 KB]

iConverter OC12FF

OC12/STM4 Fiber Converter


The iConverter OC12FF managed media converter is a member of the modular iConverter product family. The OC12FF provides multimode to single-mode fiber conversion and is a costeffective solution for extending network distances by connecting multimode fiber network devices over single-mode fiber cabling.



iConverter OC12FF.pdf
PDF-Dokument [279.3 KB]

iConverter OC3FF

OC3/STM1 Fiber Converter


The iConverter OC3FF managed media converter is a member of the modular iConverter product family. The OC3FF provides multimode to single-mode fiber conversion and is a cost-effective solution for extending OC-3 network distances by connecting multimode fiber network devices over single-mode fiber cabling.



iConverter OC3FF.pdf
PDF-Dokument [295.1 KB]

iConverter 2FXM2

100Base-Fx to 100Base-Fx Fiber VLAN Switch, Ethernet Fiber Converter and Network Interface Device with Integrated Management and Enhanced Features


The iConverter 2FXM2 conforms to the Ethernet in the First Mile (EFM) standards to support Fiber-to-the-X Metropolitan and Enterprise LAN networks. The 2FXM2 provides intelligent, securely managed service demarcation at the customer premises, offering Quality of Service and Bandwidth Control (rate-limiting) capabilities. The 2FXM2 features built-in Operations, Administration and Maintenance (OAM) management with comprehensive monitoring, fault detection and provisioning.



iConverter 2FXM2.pdf
PDF-Dokument [398.1 KB]

iConverter 2FXM

100Base-Fx to 100Base-Fx Fiber VLAN Switch, Ethernet Fiber Converter and Network Interface Device with Integrated Management


The iConverter 2FXM conforms to the Ethernet in the First Mile (EFM) standards to support Fiber-to-the-X Metropolitan and Enterprise LAN networks. The 2FXM provides intelligent, securely managed service demarcation at the customer premises, offering Quality of Service and Bandwidth Control (rate-limiting) capabilities. The 2FXM features built-in Operations, Administration and Maintenance (OAM) management with comprehensive monitoring, fault detection and provisioning.



iConverter 2FXM.pdf
PDF-Dokument [394.8 KB]

iConverter 2FX

100Base-Fx to 100Base-Fx Fiber VLAN Switch and Ethernet Fiber Converter


The iConverter 2Fx managed media converter is a member of the modular iConverter product family. The 2Fx provides a cost effective solution for extending network distances by connecting multimode fiber network devices over single-mode fiber cabling. The iConverter 2Fx both regenerates and re-times the fiber optic signal, and multiple 2Fxs can be used to extend total network distances.



iConverter 2Fx.pdf
PDF-Dokument [211.7 KB]

iConverter 100FF

100Base-Fx Fiber Converters


The iConverter 100FF managed media converters are members of the modular iConverter product family. The 100FF provides single-mode to multimode fiber conversion and is a cost-effective solution to extending network distances by connecting multimode fiber network devices over single-mode fiber cabling.



iConverter 100FF.pdf
PDF-Dokument [289.1 KB]

iConverter 10T/2

10Base-T to 10Base-2 Ethernet Media Converter


The iConverter 10T/2 is a 10BASE-T to 10BASE-2 media converter that converts between twisted pair (UTP) and coax LANs and joins their collision domains. The iConverter 10T/2 facilitates the connection of a coax segment to a 10BASE-T hub. When using a pair of iConverter 10T/2 converters back to back, they can connect between two 10BASE-T hubs via coax.



iConverter 10T-2.pdf
PDF-Dokument [235.3 KB]

iConverter T1/E1

T1/E1 RJ45/RJ48 or Coax to Fiber Converters


The iConverter T1/E1 media converter provides standard T1 (1.544Mbps) or E1 (2.048Mbps) copper to fiber conversion and can be used to extend the demarcation point between service provider and networking equipment. T1/E1 media converters operate in pairs, extending distances over fiber, which improves noise immunity, quality of service, intrusion protection and network security.



iConverter T1-E1.pdf
PDF-Dokument [234.2 KB]

iConverter 4xT1/E1 MUX

Up to four T1/E1 UTP ports and one optional 10/100 Ethernet UTP port multiplexed over fiber


The iConverter 4xT1/E1 MUX multiplexes up to four T1/E1 copper circuits and one optional 10/100 Ethernet UTP port onto a fiber optic link. The aggregated services can be extended up to 120km across a fiber pair or up to 40km across a single fiber link.



iConverter 4xT1-E1 MUX.pdf
PDF-Dokument [799.1 KB]

iConverter T3/E3

T3 (DS3)/E3 Media Converters


The iConverter T3/E3 media converter provides standard T3 (44.736Mbps) or E3 (34.368Mbps) coax to fiber conversion and can be used to connect to devices such as PBXs, multiplexers, routers and video servers via fiber. T3/E3 media converters operate in pairs, extending distances over fiber, which improves noise immunity, quality of service, intrusion protection and network security.



iConverter T3-E3.pdf
PDF-Dokument [224.7 KB]

iConverter Tx/2Fx

100Base-Tx UTP to Redundant 100Fx Fiber Media Converter


The iConverter Redundant Fast Ethernet modules are designed for use in networks that require fiber or copper link redundancy. With a link fault detection time of 100 microseconds, the Redundant iConverter modules provide the rapid response time required for mission-critical applications.



iConverter Tx-2Fx and Tx-2Tx.pdf
PDF-Dokument [296.8 KB]

iConverter Tx/2Tx

100Base-Tx UTP to Redundant 100Base-Tx UTP Ethernet Module 100Base-Tx UTP to Redundant 100Base-Tx UTP Ethernet Module


The iConverter Redundant Fast Ethernet modules are designed for use in networks that require fiber or copper link redundancy. With a link fault detection time of 100 microseconds, the Redundant iConverter modules provide the rapid response time required for mission-critical applications.



iConverter Tx-2Fx and Tx-2Tx.pdf
PDF-Dokument [296.8 KB]

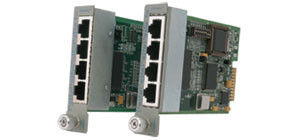

iConverter 4Tx VT

4-Port 10/100Base Tx Ethernet VLAN Switch


The iConverter 4Tx VT 10/100 managed Ethernet switch module is a member of the iConverter product family. It provides a compact 4-Port 10/100 Ethernet switch that is expandable across the iConverter 19-Module, 5-Module and 2-Module chassis backplanes, as well as being supported as a stand-alone switch with the iConverter 1-Module Chassis.



iConverter 4Tx VT.pdf
PDF-Dokument [244.0 KB]

iConverter 4Tx

4-Port 10/100BaseTx Ethernet Switch


The iConverter 4Tx 10/100 Ethernet Switch module is a member of the managed iConverter product family. The 4Tx provides a compact 4-Port 10/100 Ethernet switch that is expandable across the iConverter 19-Module, 5-Module and 2-Module chassis backplanes, as well as being supported as a standalone switch with the iConverter 1-Module Chassis.



iConverter 4Tx.pdf
PDF-Dokument [250.3 KB]

iConverter RS232

Serial RS-232 to Fiber Media Converter


The Omnitron iConverter RS232 is a managed serial RS-232 to fiber converter that transmits serial protocol over fiber media. Fiber transmission extends the serial signals up to 120km, and is immune from electrical and magnetic interference.



iConverter RS232.pdf
PDF-Dokument [321.5 KB]

iConverter RS422/485

Serial RS-422 and RS-485 to Fiber Media Converter


The Omnitron iConverter RS422/485 is a managed serial RS-422 and RS-485 to fiber converter that transmits serial protocol over fiber media. Fiber transmission extends serial signals up to 120km, and is immune from electrical and magnetic interference.



iConverter RS422-485.pdf
PDF-Dokument [236.1 KB]

iConverter X21

X.21 Serial to Fiber Media Converter


The iConverter X21 serial-to-fiber media converter supports X.21 and RS-530 applications featuring several configuration modes to enable connections with a wide variety of X.21 and RS-530 devices.



iConverter X21.pdf
PDF-Dokument [367.3 KB]

Chassis Mounting Options

iConverter 19-Module Managed Powered Chassis

The 2U (3.5 inch) high iConverter 19-Module Chassis has triple-redundant power supplies and can be mounted in a 19-inch or 23-inch rack.


It is designed for Enterprise Local Area Network (LAN) and Metropolitan Area Network (MAN) applications where fault tolerance and a high-density rack footprint are essential.



iConverter 19-Module Chassis.pdf
PDF-Dokument [255.6 KB]

iConverter 5-Module Managed Powered Chassis

The 1U (1.75 inch) high iConverter 5-Module Chassis has redundant power supplies and can be mounted in a 19-inch or 23-inch rack.


It is designed for Enterprise Local Area Network (LAN) and Metropolitan Area Network (MAN) applications where fault tolerance and reliability are essential.



iConverter 5-Module Chassis.pdf
PDF-Dokument [302.9 KB]

iConverter 2-Module Managed Powered Chassis

The iConverter 2-Module Power Chassis is a compact, versatile chassis featuring a single internal universal AC or 18-60VDC power supply.

The chassis provides housing for all iConverter media converters and switch modules.



iConverter2-Module Chassis.pdf
PDF-Dokument [287.2 KB]

iConverter 1-Module Chassis

The 1 inch high 1-Module iConverter Power Chassis supports a single iConverter module and is powered by an external AC power adapter.

The 1-Module Power Chassis is designed for network edge or Customer Premises deployments where compact size, low cost and flexible upgrades are important.



iConverter 1-Module Redundant Powered Chassis

The iConverter 1-Module Redundant Power Chassis is ideal for mission-critical Customer Premises (CP) Ethernet services, and in applications where the monitoring of external events is required.



Universal DIN Rail Mounting Bracket Kit

The Omnitron Universal DIN Rail Mounting Bracket model 8250-0 is designed to provide DIN Rail capabilities for the FlexPoint converter,

FlexPoint converter with DC Adapter, iConverter Standalone and iConverter 1-module chassis. This kit contains all the necessary components to provide DIN Rail mounting for several different mounting orientations.

Druckversion | Sitemap
© © Lanopia GmbH
