Compact SPE Converters

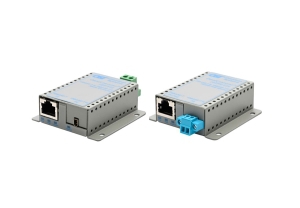

OmniConverter® Single Pair Ethernet

10Mbps 10BASE-T to 10BASE-T1L Converters



The OmniConverter Single-Pair Ethernet converters are IEEE 802.3cg compliant products that convert 10BASE-T Ethernet to single-pair 10BASE-T1L Ethernet. They use single-pair Ethernet cabling (SPE) to extend the Ethernet link distance up to 1km.



Compact SPE Converter
2010DS.pdf
PDF-Dokument [1.4 MB]

SPE PoE Converters

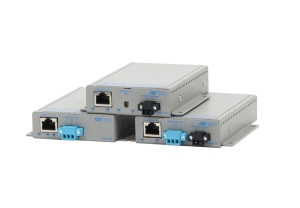

OmniConverter® Single Pair Power over Ethernet

10Mbps 10BASE-T to 10BASE-T1L Converters



The OmniConverter Single Pair Power over Ethernet converters are IEEE 802.3cg compliant products that function as PoE injectors and Powered Devices. They convert 10BASE-T Ethernet to single-pair 10BASE-T1L Ethernet. They use single-pair Ethernet cabling (SPE) to extend the Ethernet link distance up to 1km.



SPE PoE Converter
2020DS.pdf
PDF-Dokument [2.7 MB]

SPoE Ethernet- APL Converters

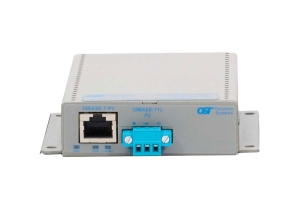

OmniConverter® 10T/APS Single Pair Ethernet

10BASE-T to 10BASE-T1L PSE Ethernet-APL Compliant Media Converters



The OmniConverter 10T/APS Single Pair Ethernet converters are 10BASE-T1L products that convert 10BASE-T Ethernet to 10BASE-T1L Ethernet. They are designed for digital instrumentation solutions used for industrial control processes. They utilize single-pair Ethernet cabling (SPE) to extend the Ethernet link distance up to 200 or 1000 meters depending on the model number.



SPoE Ethernet-APL Converter
2021DS.pdf
PDF-Dokument [1.5 MB]

Managed SPE Switches

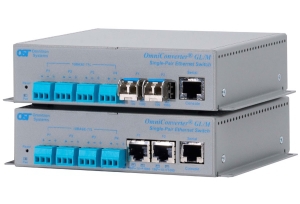

OmniConverter® GL/M

Managed Single Pair Ethernet Switch



The OmniConverter GL/M is a managed compact gigabit Ethernet switch that features copper or fiber uplink ports and four single-pair 10BASE-T1L Ethernet copper user ports. The Single Pair Ethernet switch features four IEEE 802.3cg compliant 10BASE-T1L 3-pin SPE terminal ports or IEC 63171-2 SPE ports and two 10/100/1000 RJ-45 or 100/1000 fiber uplink ports. The OmniConverter GL/M is a standard Layer 2 Ethernet switch that forwards frames to any port based on their MAC address. The switch supports Dual Device mode, Directed Switch mode and Protected Uplinks.



Managed SPE Switch
2910DS.pdf
PDF-Dokument [2.4 MB]

Unmanaged SPE Switches



OmniConverter® GL/Sx

Unmanaged Single Pair Ethernet Switch



The OmniConverter GL/Sx is an unmanaged compact gigabit Ethernet switch that features copper or fiber uplink ports and four single-pair 10BASE-T1L Ethernet copper user ports. The Single Pair Ethernet switch features four IEEE 802.3cg compliant 10BASE-T1L 3-pin SPE terminal ports or IEC 63171-2 SPE ports and two 10/100/1000 RJ-45 or 100/1000 fiber uplink ports. The OmniConverter GL/Sx is a standard Layer 2 Ethernet switch that forwards frames to any port based on their MAC address. The switch supports Dual Device mode, Directed Switch mode and Redundant Uplinks.



Unmanaged SPE Switch
2911DS.pdf
PDF-Dokument [2.5 MB]

Managed SPoE Switches

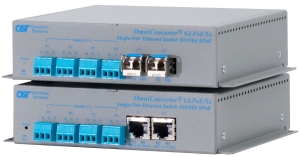

OmniConverter® GLPoE/M

Managed Single Pair Power over Ethernet Switch



The OmniConverter GLPoE/M is a managed Single Pair Power over Ethernet (SPoE) switch that is IEEE 802.3cg compliant and features copper or fiber uplink ports and four single-pair 10BASE-T1L copper SPoE user ports.

The Single Pair Power over Ethernet switch features four IEEE 802.3cg compliant 10BASE-T1L 3-pin SPoE terminal ports or IEC 63171-2 SPoE ports and two 10/100/1000 RJ-45 or 100/1000 fiber SFP uplink ports.

The GLPoE/M SPoE user ports detect and classify 30VDC class 10 - 12 and 58VDC class 13 -15 powered devices through DIP-switch selection.

The switch supports Dual Device mode, Directed Switch mode and Protected Uplinks.



Managed SPoE Switch
2930DS.pdf
PDF-Dokument [2.5 MB]

Unmanaged SPoE Switches



OmniConverter® GLPoE/Sx

Unmanaged Single Pair Power over Ethernet Switch



The OmniConverter GLPoE/Sx is an unmanaged Single Pair Power over Ethernet (SPoE) switch that is IEEE 802.3cg compliant and features copper or fiber uplink ports and four single-pair 10BASE-T1L copper SPoE user ports. The Single Pair Power over Ethernet switch features four IEEE 802.3cg compliant 10BASE-T1L 3-pin SPoE terminal ports or IEC 63171-2 SPoE ports and two 10/100/1000 RJ-45 or 100/1000 fiber SFP uplink ports.

The GLPoE/Sx SPoE user ports detect and classify 30VDC class 10 - 12 and 58VDC class 13 -15 powered devices through DIP-switch selection. It operates as a standard Layer 2 Ethernet switch that forwards frames to any port based on their MAC address. The switch supports Dual Device mode, Directed Switch mode and Redundant Uplinks.



Unmanaged SPoE Switch
2931DS.pdf
PDF-Dokument [2.5 MB]

Industrial Managed SPE Switches

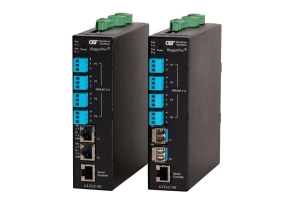

RuggedNet® GL/Mi

Managed Industrial Single Pair Ethernet Switch



The RuggedNet GL/Mi is a managed industrial gigabit Ethernet switch that features copper or fiber uplink ports and four single-pair 10BASE-T1L Ethernet copper user ports.

The Single Pair Ethernet switch features four IEEE 802.3cg compliant 10BASE-T1L 3-pin SPE terminal ports or IEC 63171-2 SPE ports and two 10/100/1000 RJ-45 or 100/1000 fiber uplink ports. The RuggedNet GL/Mi is a standard Layer 2 Ethernet switch that forwards frames to any port based on their MAC address.

The switch supports Dual Device mode, Directed Switch mode and Redundant Uplinks.



Industrial Managed SPE Switch
2912DS.pdf
PDF-Dokument [926.4 KB]

Industrial Unmanaged SPE Swiches



RuggedNet® GL/Si

Unmanaged Industrial Single Pair Ethernet Switch



The RuggedNet GL/Si is an unmanaged industrial gigabit Ethernet switch that features copper or fiber uplink ports and four single-pair 10BASE-T1L Ethernet copper user ports.

The Single Pair Ethernet switch features four IEEE 802.3cg compliant 10BASE-T1L 3-pin SPE terminal ports or IEC 63171-2 SPE ports and two 10/100/1000 RJ-45 or 100/1000 fiber uplink ports. The RuggedNet GL/Si is a standard Layer 2 Ethernet switch that forwards frames to any port based on their MAC address. The switch supports Dual Device mode, Directed Switch mode and Redundant Uplinks.



Industrial Unmanaged SPE Switch
2913DS.pdf
PDF-Dokument [1.3 MB]

Industrial Managed SPoE Switches

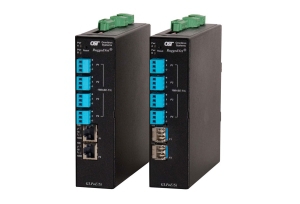

RuggedNet® GLPoE/Mi

Managed Industrial Single Pair Power over Ethernet Switch



The RuggedNet GLPoE/Mi is a managed Industrial Single Pair Power over Ethernet (SPoE) switch that is IEEE 802.3cg compliant and features copper or fiber uplink ports and four single-pair 10BASE-T1L copper SPoE user ports. The Single Pair Power over Ethernet switch features four IEEE 802.3cg compliant 10BASE-T1L 3-pin SPoE terminal ports or IEC 63171-2 SPoE ports and two 10/100/1000 RJ-45 or 100/1000 fiber SFP uplink ports. The GLPoE/Mi SPoE user ports detect and classify 30VDC class 10 - 12 and 58VDC class 13 -15 powered devices through DIP-switch selection. The switch supports Dual Device mode, Directed Switch mode and Redundant Uplinks.



Industrial Managed SPoE Switch
2934DS.pdf
PDF-Dokument [1.3 MB]

Industrial Unmanaged SPoE Switches



RuggedNet® GLPoE/Si

Unmanaged Industrial Single Pair Power over Ethernet Switch



The RuggedNet GLPoE/Si is an unmanaged Industrial Single Pair Power over Ethernet (SPoE) switch that is IEEE 802.3cg compliant and features copper or fiber uplink ports and four single-pair 10BASE-T1L copper SPoE user ports. The Single Pair Power over Ethernet switch features four IEEE 802.3cg compliant 10BASE-T1L 3-pin SPoE terminal ports or IEC 63171-2 SPoE ports and two 10/100/1000 RJ-45 or 100/1000 fiber SFP uplink ports. The GLPoE/Si SPoE user ports detect and classify 30VDC class 10 - 12 and 58VDC class 13 -15 powered devices through DIP-switch selection. The switch supports Dual Device mode, Directed Switch mode and Redundant Uplinks.



Industrial Unmanaged SPoE Switch
2935DS.pdf
PDF-Dokument [1.6 MB]

News

New Product​

OmniConverter® GLPoE/Sx

Single Pair Power over Ethernet Switch
