PT-PSE105GW2S2P-AC Din-rail PoE Switch with 4 Pair PoE up to 60 watts of power at 55VDC at 1.1amp.

Designed for the PoE++ powered 60W PoE Powered Devices (PDs), such as wireless access points, network cameras, base station, Microwave radio and other high power Ethernet terminals. It is also compatible and safe to use with any IEEE802.3bt/at/af compliant terminals. It works as a switch, data is interoperable between PoE port and SFP port. It supports 10/100/1000Mbps of data rates. Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non PoE device.

Enclosed in an IP40 fire retardant metal case, designed for indoor use but can work outdoor by covered with waterproof case with a Din-rail mount tracking. It operates with a wide input voltage of 100-240Vac/44-57Vdc. The effective distance limitation of 100 meters over Cat5e/Cat6 cables.

Can be extended with the PT-PEX-01G-OT(Outdoor or Indoor PoE Extender).

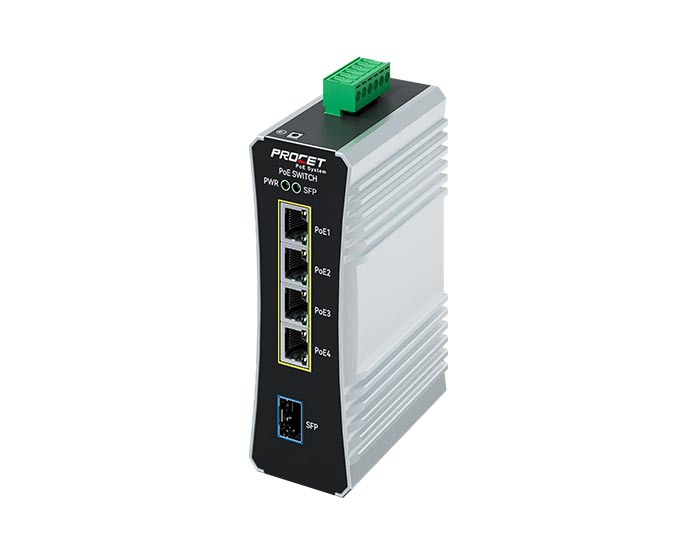

PT-PIS4PB1S is an industrial-rated 4-port PoE switch that has one SFP uplink offers a unique solution to powering long-range installations, where the data input comes over fiber, such as special scenarios, like highway side, exurb applications.  Enclosed in an IP40 high-impact metal case but can work outdoor by being covered with a waterproof case. All the Ethernet copper ports have 4KV surge protection.

It works with an input voltage of 48-55Vdc and operates under -40℃ to 65℃. This model includes 1 SFP fiber slot at 1000BASE-X, one 6-pin DC input terminal block and 4 PoE ports, provides 90W per port power for remote PDs over 4 pairs output at 10/100/1000Mbps of data speed. Each PoE port is compliant with BT standard and backward compatible with 802.3af/at. Such as power for Pan Tilt Zoom cameras/IP cameras, VoIP video phones, building/access control equipment, WiFi access devices, POS terminals, thin clients, kiosks, and IP print servers.

For planning purposes, the effective distance is 100 meters over Cat5e/Cat6 cables. This model is equipped with a standard DIN rail mounting bracket, which can easily jam into the guide rail. There are two DC power input connectors on the 6-pin terminal block. Do not feed input 1 and input 2 simultaneously, otherwise, there will be a risk of damage to the unit.

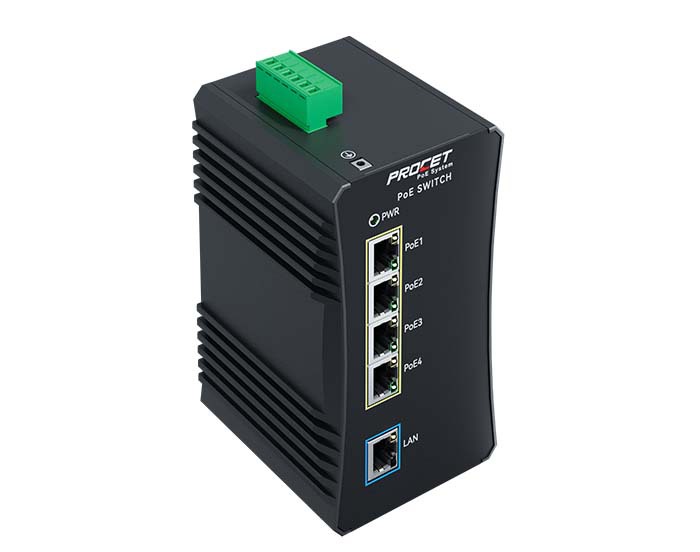

PT-PIS4PB1T-E is an industrial-rated 4-port PoE switch that has one  1 copper Ethernet uplink Interfaces and 4 RJ45 PoE ports.  Enclosed in an IP40 high-impact metal case but can work outdoor by being covered with a waterproof case. All the RJ45 Ethernet copper ports have 4KV surge protection.

Two DC power inputs, you can choose either one to go ahead. Do not connect both two DC power simultaneously. One DC supports wide input voltage of 12-55Vdc, the other DC only supports 48-55Vdc. The working temperature can be from -40℃to 65℃. 4 PoE ports provide 90W each power for remote PDs over 4 pairs output at 10/100/1000Mbps of data speed. Each PoE port is compliant with BT standard and backward compatible with 802.3af/at. Such as power for Pan Tilt Zoom cameras/IP cameras, VoIP video phones, building/access control equipment, WiFi access devices, POS terminals, thin clients, kiosks, and IP print servers.

For planning purposes, the effective distance is 100 meters over Cat5e/Cat6 cables. This model is equipped with a standard DIN rail mounting bracket, which can easily jam into the guide rail.

PT-PIS2P2S-DC is a multi-port industrial switch with 2 Pair PoE up to 30 watts of power at 55 VDC at 0.55 amp.

Designed for the IEEE802.3at powered 30W PoE Powered Devices (PDs), such as IP Cameras, wireless APs, Microwave radio, IoT applications, door locks, displays, POS, and information kiosks, It supports 10/100/1000Mbps of data rates. Fully comply with IEEE802.3bt and remains compatible with any IEEE802.3af/at compliant devices. Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non-PoE device.

Enclosed in an IP40 fire retardant metal case, designed for outdoor installation with a Din-rail mount tracking. It operates with a wide input voltage of 44-57 VDC, 50 or 60 Hz. The effective distance limitation of 100 meters over Cat5e/Cat6 cables can be extended with the PT-PEX-01G-OT(Outdoor or Indoor PoE Extender)

PT-PIS2P2S-E is a multi-port industrial switch with 2 Pair PoE up to 30 watts of power at 55 VDC at 0.55 amp.

Designed for the PoE+ powered 30W PoE Powered Devices (PDs), such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks, It supports 10/100/1000Mbps of data rates. Fully comply with IEEE802.3at and remains compatible with any IEEE802.3af/at compliant devices. Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non PoE device.

Enclosed in an IP40 fire retardant metal case, designed for outdoor installation with a Din-rail mount tracking. It operates with a wide input voltage of 12-48 VDC, 50 or 60 Hz. The effective distance limitation of 100 meters over Cat5e/Cat6 cables can be extended with the PT-PEX-01G-OT(Outdoor or Indoor PoE Extender)

PT-PIS2P2S-AC is a multi-port industrial switch with 2 Pair PoE up to 30 watts of power at 55 VDC at 0.55 amp.

Designed for the PoE+ powered 30W PoE Powered Devices (PDs), such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks, It supports 10/100/1000Mbps of data rates. Fully comply with IEEE802.3at and remains compatible with any IEEE802.3af compliant devices. Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non PoE device.

Enclosed in an IP40 fire retardant metal case, designed for outdoor installation with a Din-rail mount tracking. It operates with a wide input voltage of 100-240 VAC, 50 or 60 Hz. The effective distance limitation of 100 meters over Cat5e/Cat6 cables can be extended with the PT-PEX-01G-OT(Outdoor or Indoor PoE Extender)

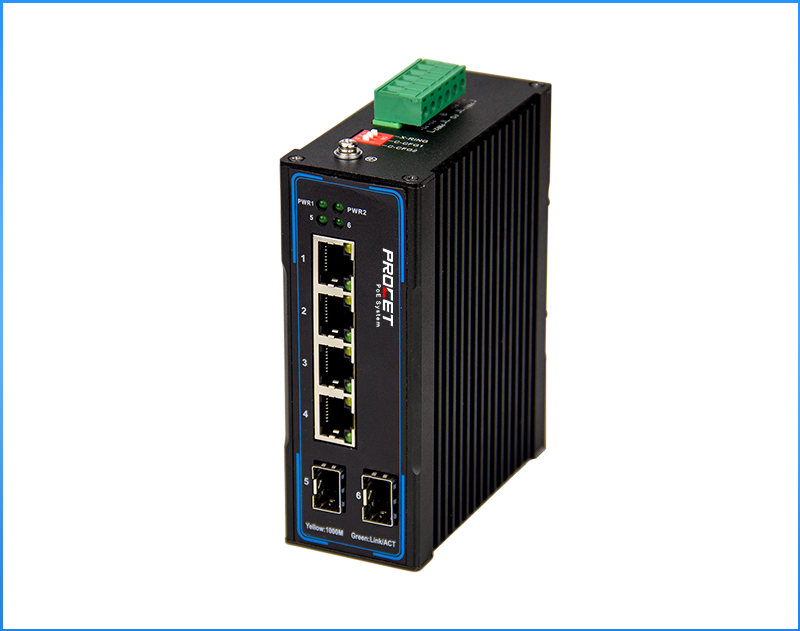

PT-PIS4P2S is an industrial-grade indoor fiber optic PoE switch, IEEE802.3at protocol, the power transmission of each port is 30W, 4 ports total transmission power is 120W, gigabit data speed, with 2 fiber ports.

Dual voltage input design, with redundant function, 50-57V DC power supply, anti-reverse connection, overvoltage, and overcurrent protection. Widely used in communication, security, information kiosks, etc., and can power 4 PDs at the same time.

IP40 metal shell. Works from -40°C to 85°C, and the storage environment is non-condensing within the relative humidity range of 5%-95%, which can adapt to work in various harsh environments.

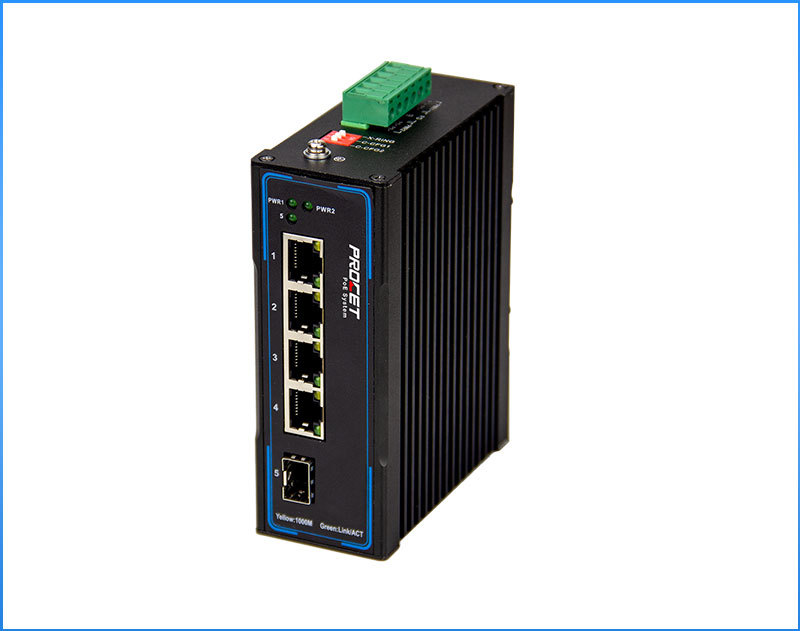

PT-PIS4P1S1T is an industrial-grade PoE switch that fully complies with the IEEE802.3at devices. The power transmission of each port is 30W, and the total transmission power with 4 ports is 120W. The gigabit transmission rate with fiber ports.

It is specially designed for 30W PoE power supply devices (PD) powered by IEEE802.3at, widely used in communication, security, Internet of Things applications, information kiosks, etc. It can supply power and transmit data to 4 terminal devices at the same time.

IP40 metal shell, the working environment temperature range is -40°C to 85°C, and the storage environment is non-condensing within the relative humidity range of 5%-95%, which can adapt to work in various harsh environments.

PT-PIS4P1S is an industrial-grade indoor fiber optic PoE switch, which fully complies with the IEEE802.3at standard protocol, supply 30W each port, the 4 ports transmission power is connected is 120W in total, gigabit transmission rate.

Dual voltage input design, with redundant function, anti-reverse connection, overvoltage, and overcurrent protection. It is widely used in communication, security, Internet of Things applications, information kiosks, etc., and can supply and transmit power to 4 terminal devices at the same time.

IP40 metal shell, working temperature range is -40 ℃ to 85 ℃, and the storage environment has no condensation within the relative humidity range of 5%-95%, which can adapt to work in various harsh environments.

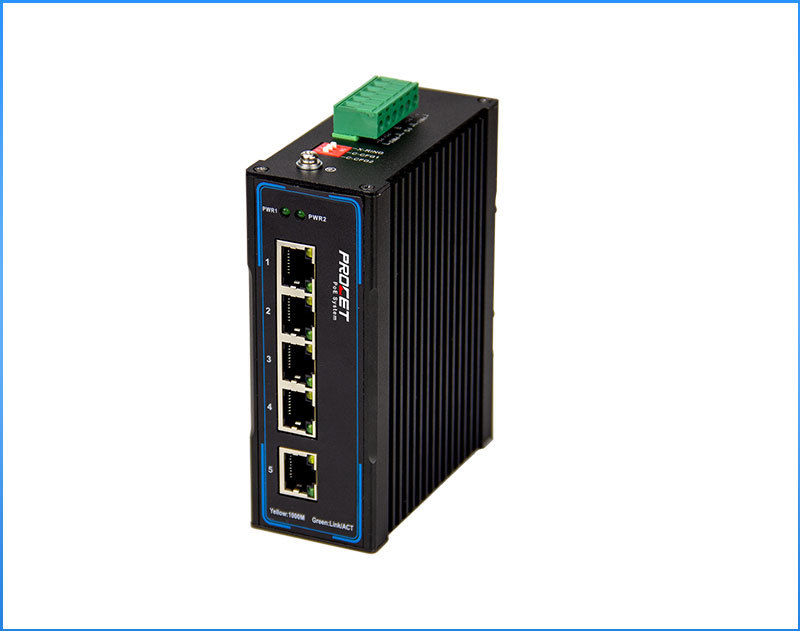

PT-PIS4P1T is an industrial-grade PoE switch that fully complies with the IEEE802.3at devices. The power transmission of each port is 30W, and the total transmission power with 4 ports is 120W. The gigabit transmission rate with fiber ports.

Specially designed for the PoE power supply device (PD) powered by IEEE802.3at and has a built-in detection chip. After detecting whether the PD is suitable, it will automatically determine whether it is powered on, so as to better protect the terminal equipment. It is widely used in communication, security, Internet of Things applications, information kiosks, etc., and can supply and transmit power to 4 terminal devices at the same time.

IP40 metal shell, the working environment temperature range is -40°C to 85°C, and the storage environment is non-condensing within the relative humidity range of 5%-95%, which can adapt to work in various harsh environments.

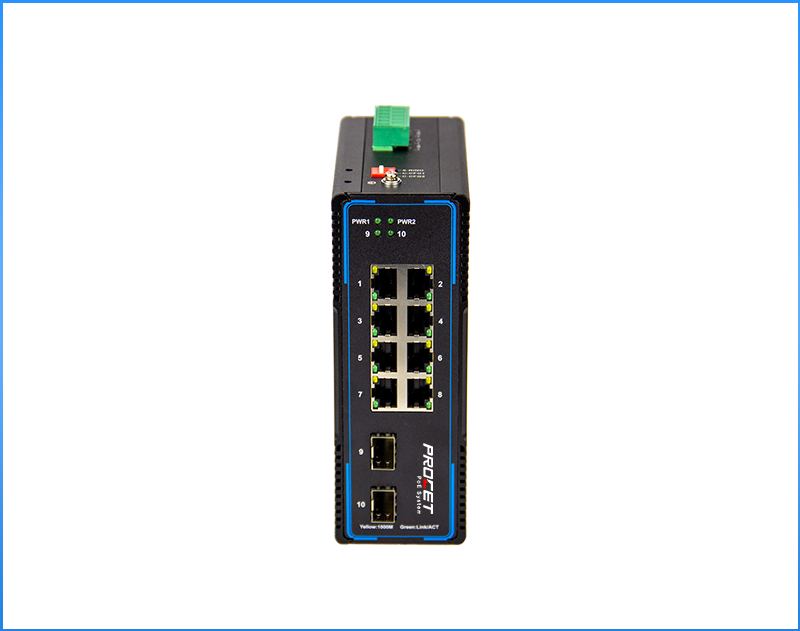

PT-PIS8P2S is an industrial-grade fiber optic PoE switch, which fully complies with the IEEE802.3at standard protocol, supply 30W each port, the 8 ports transmission power is connected is 240W in total, gigabit data rates.

Dual voltage input design, with redundant function, anti-reverse connection, overvoltage, and overcurrent protection. It is widely used in communication, security, Internet of Things applications, information kiosks, etc., and can supply and transmit power to 8 terminal devices at the same time.

IP40 metal shell, working temperature range is -40 ℃ to 85 ℃, and the storage environment has no condensation within the relative humidity range of 5%-95%, which can adapt to work in various harsh environments.

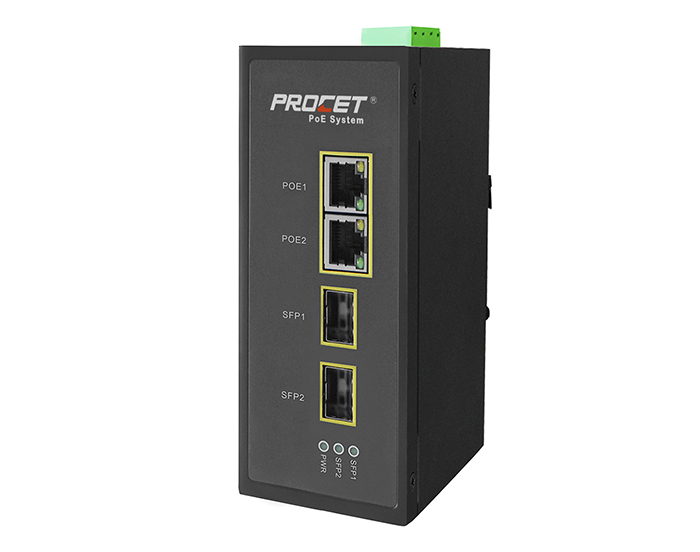

PT-PIS2P2S-AC is an AC to DC 2-port, industrial-scale with SFP fiber uplink PoE switch, which includes 2 SFP fiber slots at 1000BASE-X, 1 AC/DC input terminal block supports both AC and DC input, and 2 PoE ports, provides power and transfer signal for remote PDs over 2 pairs output at 10/100/1000Mbps of data speed. Each PoE port is compliant with IEEE802.3at standard and backward compatible with 802.3af. Such as power for wireless access points, network cameras, VoIP Phones, Base stations, and other power Ethernet terminals. All the Ethernet copper ports have 4KV surge protection.

PT-PIS2P2S-AC is designed for indoor use but can work outdoors by being covered with a waterproof case. This model can be fed by both AC of 100-240Vac and DC of 44-57 voltage input and operates from -40℃ to 65℃. It has a detecting chip inside, which will detect and classify PD before powering it. It will not apply power until a standard-compliant PD is detected. The effective distance is 100 meters over Cat5e/Cat6 cables.

Equipping with a standard DIN rail mounting bracket, which can easily jam into the guide rail.

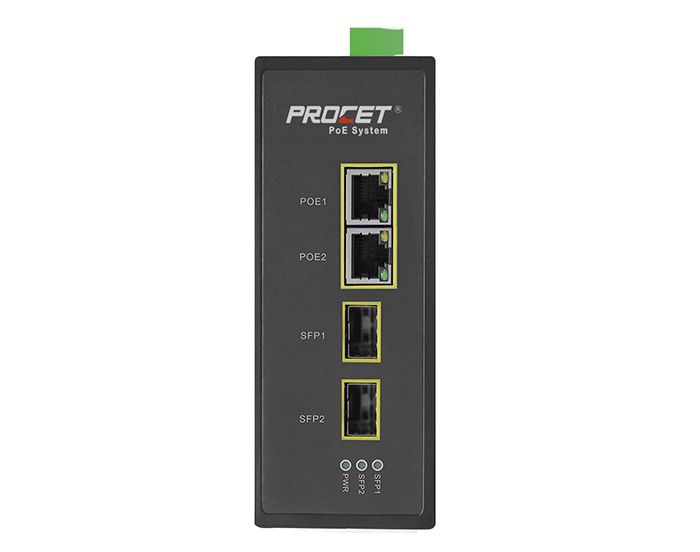

PT-PIS2PB2S-AC is an AC to DC 2-port, industrial-scale with SFP fiber uplink PoE switch, which includes 2 SFP fiber slots at 1000BASE-X, 1 AC/DC input terminal block supports both AC and DC input, and 2 PoE ports, provides power and transfer signal for remote PDs over 4 pairs output at 10/100/1000Mbps of data speed. Each PoE port is compliant with IEEE802.3bt standard and backward compatible with 802.3af/at. Such as power for wireless access points, network cameras, VoIP Phones, Base stations, and other power Ethernet terminals. All the Ethernet copper ports have 4KV surge protection.

PT-PIS2PB2S-AC is designed for indoor use but can work outdoors by being covered with a waterproof case. This model can be fed by both AC of 100-240Vac and DC of 44-57 voltage input and operates from -40℃ to 65℃. It has a detecting chip inside, which will detect and classify PD before powering it. It will not apply power until a standard-compliant PD is detected. The effective distance is 100 meters over Cat5e/Cat6 cables.

Equipping with a standard DIN rail mounting bracket, which can easily jam into the guide rail.
