PT-PR01G-DIN is a single-port PoE surge protector, which has 2 RJ45 ports. Either port can be PoE in or PoE out. It supports 8 lines of network signals and provides surge protection for PoE wires. The PoE surge protector can bear 10KA Peak Surge Current. 10KV(10/700us) common mode surge voltage and 1.5KV(10/700us) differential mode surge voltage. It  not only supports 10/100/1000Mbps of data rates, but also 2.5/5/10GbE NBase-T. It is ideal to protect your device against surge damage.

It is designed for indoor use with a Zinc-alloy shell, which works with 60Vdc Max voltage and operates from -40℃ to 85℃. It is connected to network over Cat5e/Cat6 cables with RJ45 connector conveniently and tightly.

This model is equipped with a standard DIN rail mounting bracket, which can easily mount into the guide rail. The Ethernet lightning arrestor must be properly grounded to work. Because it is only used on a DIN Rail and the DIN rail as a ground wire to transmit current to the earth.

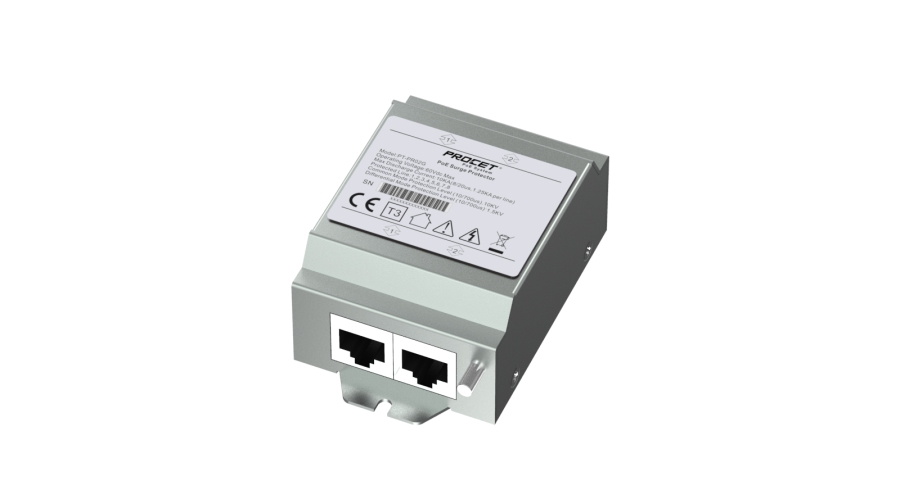

PT-PR02G is a dual-port industrial PoE surge protector designed for exterior complex backhaul and networking applications with an IP 40 rated Zinc alloy shell. It supports 8 lines of network signals and provides surge protection for PoE wires. 10KV surge protection and four Level protection for SPD technology. Peak Surge Current up to 10KA. It supports 10/100/1000Mbps of data rates. Ideal for 120W(max) PoE wires and will protect your devices against surge damage.

This surge protector operates from -40℃ to +85℃ and works with a voltage of 60Vdc (max). It is connected to the network over Cat5e/Cat6 cables with an RJ45 connector conveniently and tightly.

This model is equipped for wall-mounted or standard DIN rail mounting bracket, which can easily mount into the guide rail. The DIN rail is a ground wire to transmit the current to the earth.

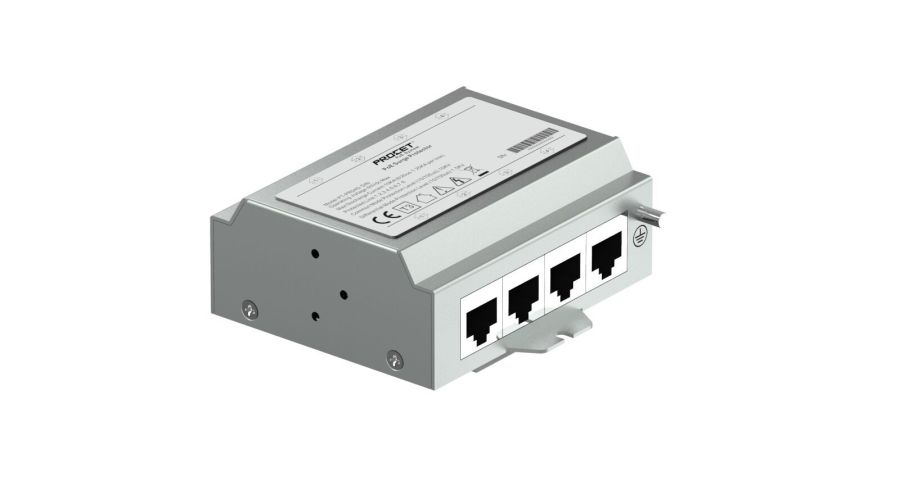

PT-PR04G is a four-port industrial PoE surge protector designed for exterior complex backhaul and networking applications with an IP 40 rated Zinc alloy shell.  It supports 8 lines of network signals and provides surge protection for PoE wires.  10KV surge protection and four Level protection for SPD technology. Peak Surge Current up to 10KA. It supports10/100/1000Mbps of data rates. Ideal for  120W(max) PoE wires and protects your devices against surge damage.

This surge protector operates from -40℃ to +85℃ and works with a voltage of 60Vdc (max). It is connected to the network over Cat5e/Cat6 cables with an RJ45 connector conveniently and tightly.

This model is equipped  with a wall-mounted or standard DIN rail mounting bracket, which can easily mount into the guide rail. The DIN rail is a ground wire to transmit the current to the earth.

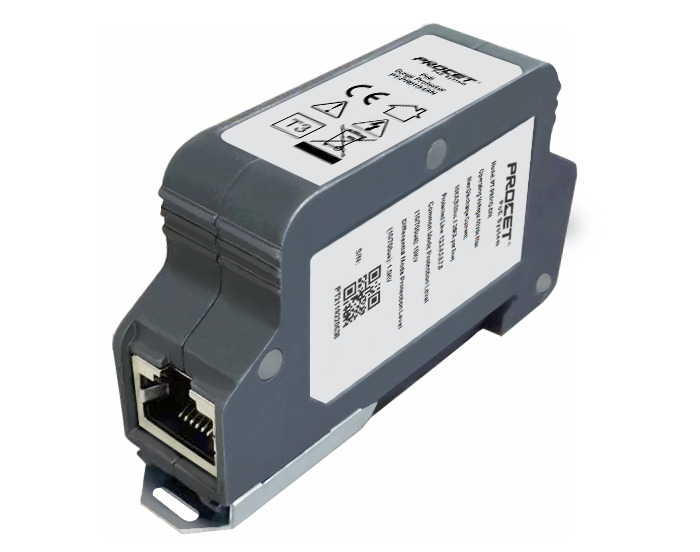

PT-PR01G-DIN is a single-port industrial PoE surge protector designed for exterior complex backhaul and networking applications with an IP 40 rated Zinc alloy shell. It supports 8 lines network signals and provides surge protection for PoE wires. 10KV surge protection and four Level protection for SPD technology. Peak Surge Current up to 10KA. It supports10/100/1000Mbps of data rates. Ideal for 110W(max) PoE wires and well protects your devices against surge damage.

This surge protector operates from -40℃ to +85℃ and works with voltage of 60Vdc (max). PoE In port should always be connected to device which you want it to be protected.

It is connected to network over Cat5e/Cat6 cables with RJ45 connector conveniently and tightly. This model is equipped with standard DIN rail mounting bracket, which can easily mount nto the guide rail. The DIN rail as a ground wire to transmit the current to the earth.

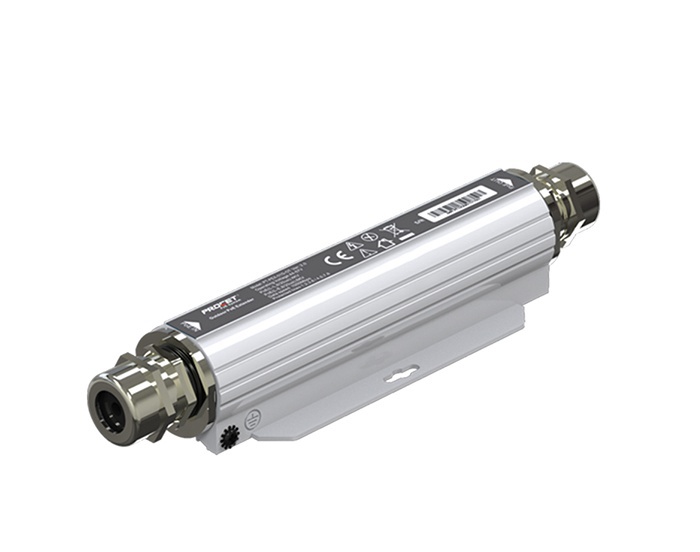

PT-PR01B-10G-OT outdoor PoE surge protector designed for exterior complex backhaul and networking applications with an IP 67 rated Aluminum alloy shell. It supports 8 lines of network signals and provides surge protection for PoE wires. 10KV surge protection and four Level protection for SPD technology. Peak Surge Current up to 20KA.It not only supports 10/100/1000Mbps of data rates, but also 2.5/5/10GbE NBase-T.Ideal for 100W(max) PoE wires and well protects your devices against surge damage.

This surge protector operates from -40℃ to +65℃ and works with voltage of 44-57Vdc. PoE In port should always be connected to device which you want it to be protected.

Both RJ45 ports connect to network over Cat5e/Cat6 cables which is very conveniently and tightly. It can be easily installed with 2 mounting holes.

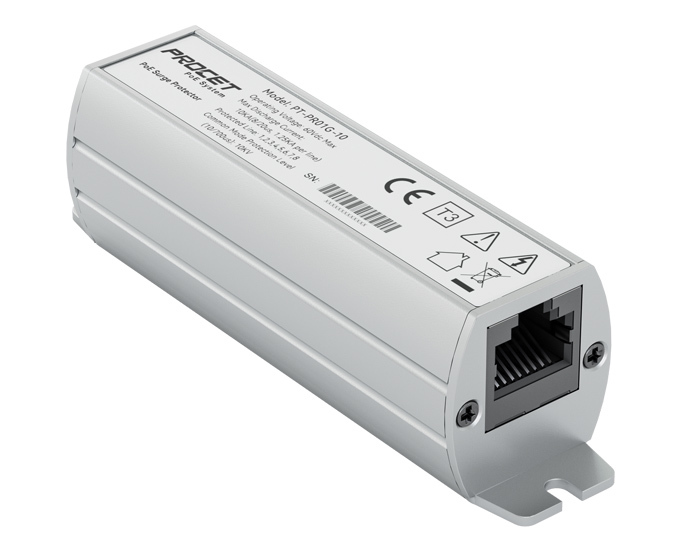

PT-PR01G-10 is a single-port Ethernet surge protector. Enclosed in an Aluminum Alloy shell, with a silver color exterior, complemented by an anodized aluminum surface. Enhanced RJ45 socket exhibits minimal signal attenuation. High-quality Gas discharge tube(GDT). Withstand extreme environmental conditions within a temperature range of -40 to 85 degrees Celsius. Max Discharge Current: 10KA (8/20us, 1.25KA per line). Supports power of 120W, 60Vdc(max) Ethernet equipment.

This surge protector can not only work with IEEE802.3af/at/bt/PoE++ standard devices, but also supports non-standard Ethernet equipment, that will protect your devices against surge damage. And it can also support 10/100/1000Mbps, 2.5/5/10Gbps data rate.The common mode surge voltage exceeds 10KV(10/700us) and the differential mode surge voltage is 1.5KV(10/700us).

PT-PR01G-OT is a single-port PoE surge protector designed for exterior complex backhaul and networking applications with an IP 67 rated Aluminum alloy shell. It supports 8 lines network signals and provides surge protection for PoE wires. 10KV surge protection and four Level protection for SPD technology. Peak Surge Current up to 20KA. It supports 10/100/1000Mbps of data rates. Ideal for 60W(max) PoE wires and well protects your devices against surge damage.

This surge protector operates from -40℃ to +65℃ and works with voltage of 44-57Vdc. PoE In port should always be connected to device which you want it to be protected.

Both RJ45 ports connect to network over Cat5e/Cat6 cables which is very conveniently and tightly. It can be easily installed with 2 mounting holes.

PT-PR01GB-OT is a single-port PoE surge protector designed for exterior complex backhaul and networking applications with an IP 67 rated Aluminum alloy shell. It supports 8 lines network signals and provides surge protection for PoE wires. 10KV surge protection and four Level protection for SPD technology. Peak Surge Current up to 20KA. It supports 10/100/1000Mbps of data rates. Ideal for 100W(max) PoE wires and will protect your devices against surge damage.

This surge protector operates from -40℃ to +65℃ and works with voltage of 44-57Vdc. PoE In port should always be connected to device which you want it to be protected.

Both RJ45 ports connect to network over Cat5e/Cat6 cables which is very conveniently and tightly. It can be easily installed with 2 mounting holes.

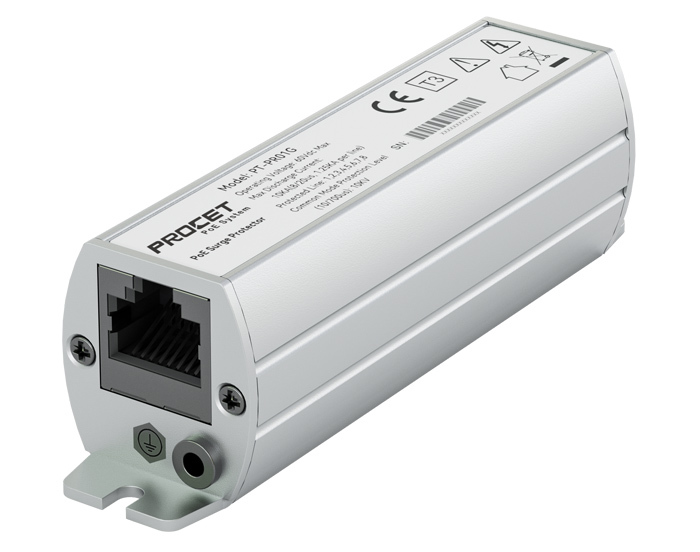

PT-PR01G is a single-port Ethernet surge protector. Enclosed in an Aluminum Alloy shell, with a silver color exterior, complemented by an anodized aluminum surface. Enhanced RJ45 socket exhibits minimal signal attenuation. High-quality Gas discharge tube(GDT). Withstand extreme environmental conditions within a temperature range of -40 to 85 degrees Celsius. Max Discharge Current: 10KA (8/20us, 1.25KA per line). Supports power of 120W, 60Vdc(max) Ethernet equipment.

This surge protector can not only work with IEEE802.3af/at/bt/PoE++ standard devices, but also supports non-standard Ethernet equipment, that well protects your devices against surge damage. The common mode surge voltage exceeds 10KV(10/700us) and the differential mode surge voltage is 1.5KV(10/700us).
