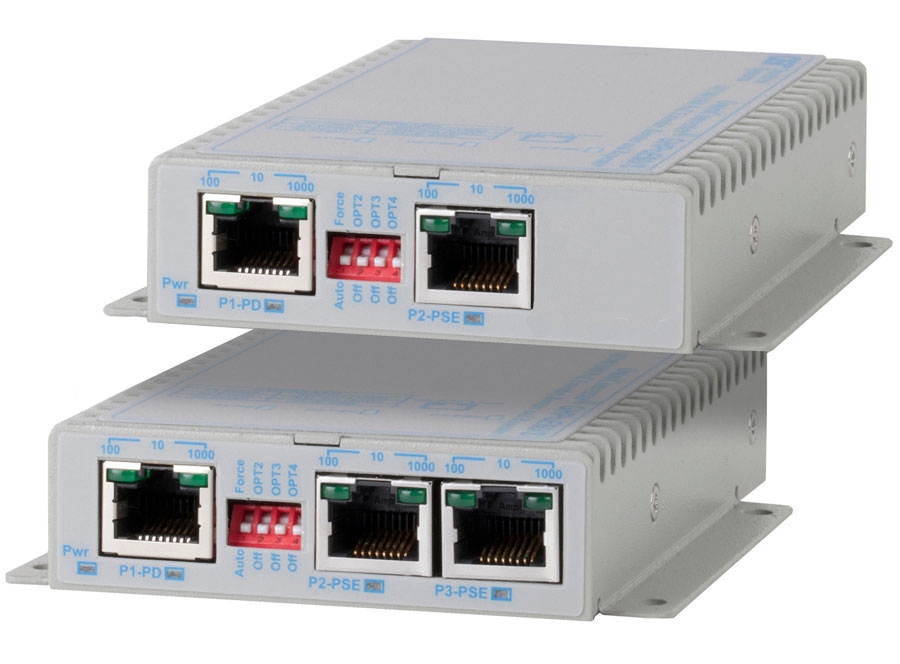

OmniConverter GXPoE+/S and GXHPoE/Sare unmanaged gigabit PoE Extenders that enable the delivery of Ethernet data and Power over Ethernet (PoE) beyond the standard 100 meter limit of twisted pair copper cabling.

OmniConverter PoE Extenders provide cost-effective distance extension and connectivity to remote PoE devices where external power is not available or hard to provision, or when replacing copper with fiber becomes cost prohibitive.

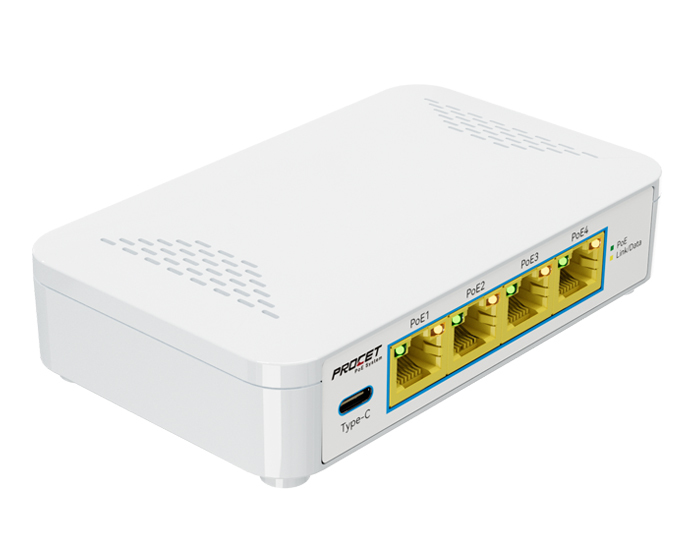

EN-PEX04GBC is a 4-port Gigabit PoE extender, can deliver power and transmit data to 4 802.3af/at PDs simultaneously, total power budget is 65W. It is powered by an ultra 802.3bt/PoE++ switch or PSE, does not need an external power adapter. The maximum power input is 90W. The total effective distance from data source to PD is 200 meters over CAT5e/CAT6 cables. Daisy-chain 2 units reaching 300m from end to end or by star topology can power up 7 PDs.

Equipped a USB-C port, which can deliver power to mobile phone，tablet or USB-C devices. Designed with OVP, OCP, SCP function.

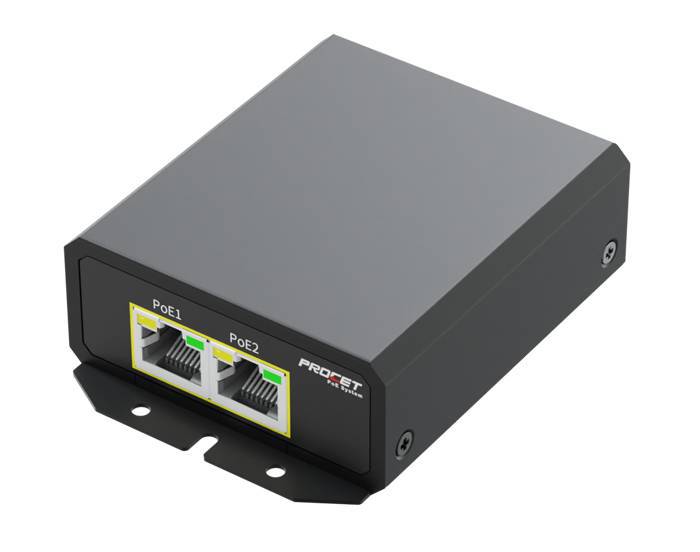

PT-PEX02GB is an industrial-rated PoE Extender with two PoE output ports, specially designed for complex backhaul and networking applications. Enclosed in a high-impact metal shell. The 3 ports 10/100/1000Mbps includes: 1 x PoE-powered input port with 802.3bt/PoE++ at 60W or higher of 95W(Max) and 2 x PoE output ports with 6KV (10/700us) surge protection. Each output port delivers 30W(Max) power for remote two PDs, totaling up to 60W.

PoE Input port requiring more power which is powered by ultra 802.3bt PoE++ works with an input voltage of 44- 57Vdc and operates under -40℃ to +65℃. Equipped detecting chip inside which will make the PoE identification handshake with IEEE802.3af/at/PoE+ PDs, such as wireless APs, IP cameras, base stations, Microwave radio, and other PoE power Ethernet backhaul devices. For planning purposes, the total effective distance from Ultra PoE to PDs is 200 meters over CAT5e/CAT6 cables without local power.

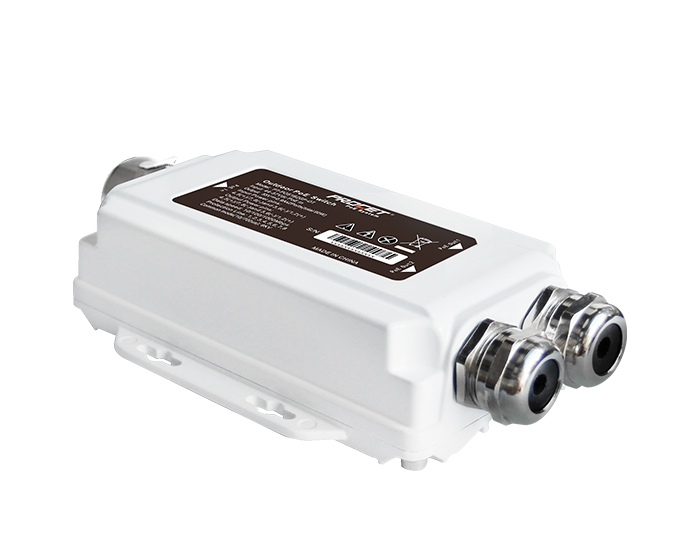

PT-PEX02GB-OT is an outdoor rated PoE Extender with two PoE output ports, specially designed for exterior, complex backhaul and networking applications. Enclosed in an IP67 Reflective Aluminum alloy housing.


The 3 ports 10/100/1000Mbps includes: 1 x PoE powered input port with 802.3bt at 95W and 2 x PoE output ports with 6KV (10/700us) surge protection. Each output port delivers 45W(Max) power for remote two PDs, totaling up to 90W. PoE Input port requiring more power which is powered by ultra 802.3bt PoE, works with input voltage of 50- 57Vdc, and operates under -40℃ to +65℃. The output ports equipped detecting chip which are compliant with IEEE802.3af/at/bt PDs, such as wireless APs, IP cameras, Microwave radio, base stations and other power Ethernet backhaul devices.

For planning purposes, the total effective distance from Ultra PoE to PDs is 200 meters over CAT5e/CAT6 cables without local power. It is easy to install with mounting hole, no need to open the equipment. With Stainless Steel Cable ties can be fixed on a Pole.

PT-PEX01GB-OT is a single-port PoE extender designed for exterior complex backhaul and networking applications with an IP 67 rated Aluminum alloy shell.It gets 55Vdc(typical), 1.1A power from PoE Injector/switch to remote PDs over full 4 pairs with 6KV (10/700us) surge protection. It supports 10/100/1000Mbps of date speed. The output port makes the PoE identification handshake with IEEE802.3af/at/bt/PoE++ PDs，such as wireless APs, base stations, network cameras and other high power Ethernet terminals.

It works with input voltage of 44-57Vdc from PoE injector/switch and operates under -40℃ to +65℃. On the input side, it connects to PoE injector or PoE switch, on the output side, it connects to PDs. The total effective distance from PoE injector to PD is 200 meters over CAT5e/CAT6 cables without local power. It can work longer to 500 meters with adding 4 PoE extenders. It is easy to install with 2 mounting holes and is specially suitable for working in complex power situations.

It supports terminal equipments with IEEE802.3af/at/bt,PoE++ standard. There will be power loss after adding two or more extenders.

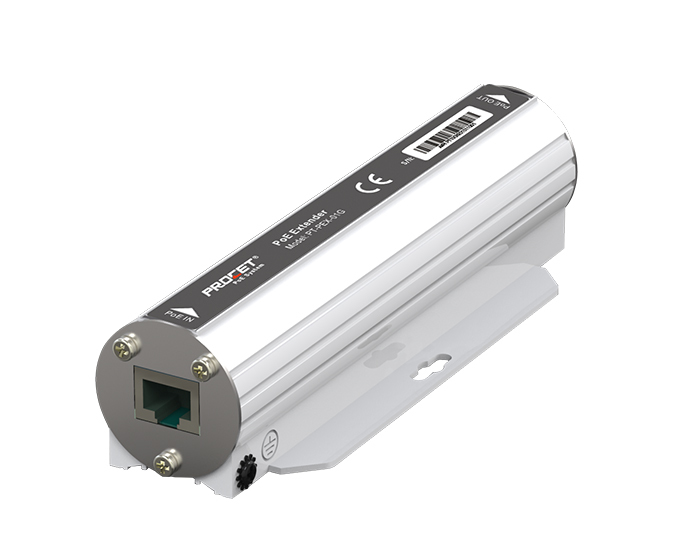

PT-PEX01G is a single-port PoE extender designed for networking applications with an IP 40 rated Aluminum alloy shell.It delivers 55Vdc(typical), 1.1A power from PoE Injector/switch to remote PDs over full 4 pairs with 6KV (10/700us) surge protection. It supports 10/100/1000Mbps of date speed. It works with 60W(Max) PoE PDs，such as wireless APs, base stations, network cameras and other high power Ethernet terminals.

It works with input voltage of 44-57Vdc from PoE injector/switch and operates under -40℃ to +65℃. On the input side, it connects to PoE injector or PoE switch, on the output side, it connects to PDs. The total effective distance from PoE injector to PD is 200 meters over CAT5e/CAT6 cables without local power. It can work longer to 500 meters with adding 4 PoE extenders. It is easy to install with 2 mounting holes and is specially suitable for working in complex power situations.

It supports terminal equipments with IEEE802.3af/at,PoE++ standard. There will be power loss after adding two or more extenders, but the output power can be up to 60W for your PD with one extender.

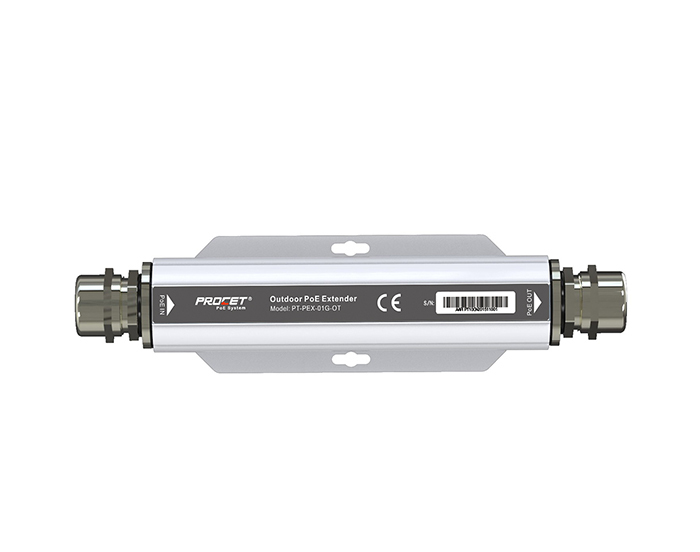

PT-PEX01G-OT is a single-port PoE extender designed for exterior complex backhaul and networking applications with an IP 67 rated Aluminum alloy shell.It gets 55Vdc(typical), 1.1A power from PoE Injector/switch to remote PDs over full 4 pairs with 6KV (10/700us) surge protection. It supports 10/100/1000Mbps of date speed.60W input, 60W input, 802.3af/at output，such as wireless APs, base stations, network cameras and other high power Ethernet terminals.

It works with input voltage of 44-57Vdc from PoE injector/switch and operates under -40℃ to +65℃. On the input side, it connects to PoE injector or PoE switch, on the output side, it connects to PDs. The total effective distance from PoE injector to PD is 200 meters over CAT5e/CAT6 cables without local power. It can work longer to 500 meters with adding 4 PoE extenders. It is easy to install with 2 mounting holes and is specially suitable for working in complex power situations.

It supports terminal equipments with IEEE802.3af/at,PoE++ standard. There will be power loss after adding two or more extenders.
