.Outdoor IP67 - 4 Pair - 60W PoE++  2 Port Switch

PT-POS301GWRF-OT is an outdoor rated switch speciall designed for exterior, complex backhaul and networking applications, special scenarios, like highway side, exurb, etc.

After negotiating PoE++ standard PD, the two PoE output ports delivers 55Vdc, 1.1A up to 60W power with 6KV surge protection for remote PDs over 4 Pair at 1000Mbps data rates. It works with a wide input voltage of 100-240Vac with 6KV surge protection and operates under -40℃ to +65℃. It fully complies with PoE++ and remains compatible with any IEEE802.3af/at compliant devices, such as IP Cameras, wireless APs, Microwave radio, IoT application and other high power PoE devices.

For planning purposes, the effective distance is 100 meters over Cat5e/Cat6 cables. Easily to install with installation kit PT-POT-MBK(Sold separately), no need to open the equipment.

Outdoor IP66 - 2 Pair - 30W PoE+ 3 Port Switch

T-POS401GR-OT-D is a 3 port outdoor Switch with 2 Pair PoE up to 30 watts of power at 55 VDC at 0.55 amp.

Designed for the PoE+ powered 30W PoE Powered Devices (PDs), such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks, It supports 10/100/1000Mbps of data rates. Fully comply with IEEE802.3at and remains compatible with any IEEE802.3af compliant devices. Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non PoE device.

Enclosed in an IP66 fire retardant metal case, designed for indoor installation with Wall-mounted. It operates with a wide input voltage of 44-57 VDC. The effective distance limitation of 100 meters over Cat5e/Cat6 cables can be extended with the PT-PEX-01G-OT(Outdoor or Indoor PoE Extender).

PT-POS401GRF-OT is an outdoor rated switch speciall designed for exterior, complex backhaul and networking applications, special scenarios, like highway side, exurb, etc.

After negotiating IEEE802.3at standard PD, the three PoE output ports delivers 55Vdc, 0.55A up to 30W power with 6KV surge protection for remote PDs over 2 Pair at 1000Mbps data rates. It works with a wide input voltage of 100-240Vac with 6KV surge protection and operates under -40℃ to +65℃. It fully complies with 802.3at and remains compatible with any IEEE802.3af compliant devices, such as IP Cameras, wireless APs, Microwave radio, IoT application and other high power PoE devices.

For planning purposes, the effective distance is 100 meters over Cat5e/Cat6 cables. Easily to install with installation kit PT-POT-MBK(Sold separately), no need to open the equipment.

PT-POS201GBRF-OT is an outdoor rated switch specially designed for exterior, complex backhaul and networking applications, special scenarios, like highway side, exurb, etc.

After negotiating PoE++ standard PD, the single PoE output port delivers 55Vdc, 1.75A up to 95W power with 6KV surge protection for remote PDs over 4 Pair at 1000Mbps data rates. It works with a wide input voltage of 100-240Vac with 6KV surge protection and operates from -40℃ to +65℃. It fully complies with PoE++ and remains compatible with any IEEE802.3af/at compliant devices, such as IP Cameras, wireless APs, Microwave radio, IoT applications and other high-power PoE devices.

For planning purposes, the effective distance is 100 meters over Cat5e/Cat6 cables. Easily to install with installation kit PT-POT-MBK(Sold separately), no need to open the equipment.

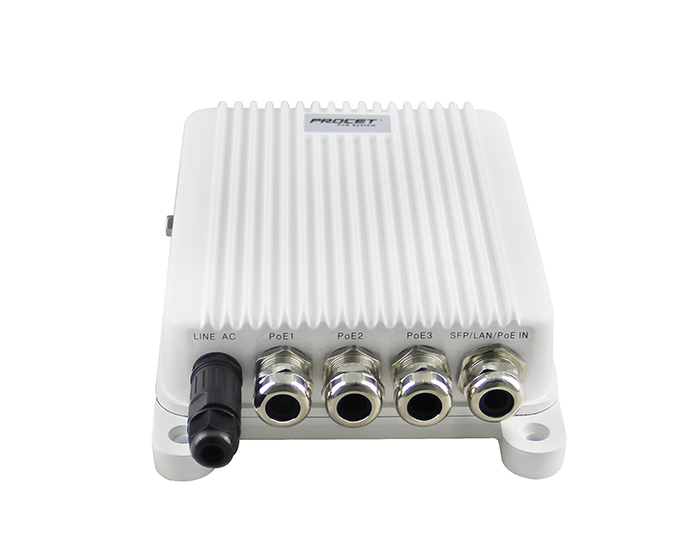

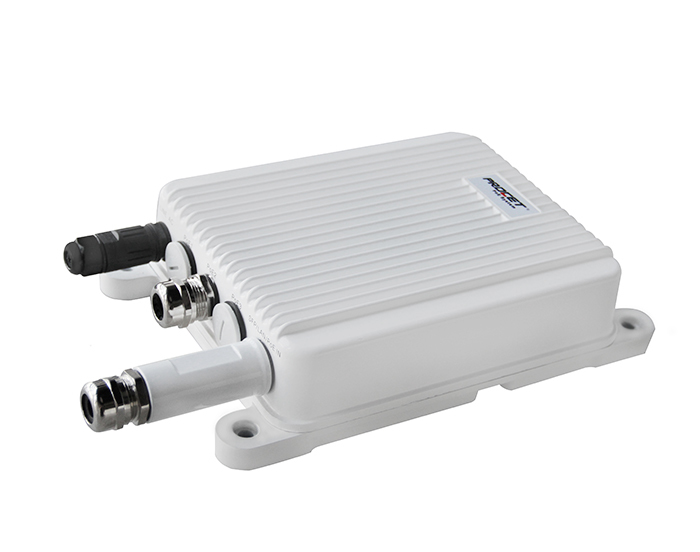

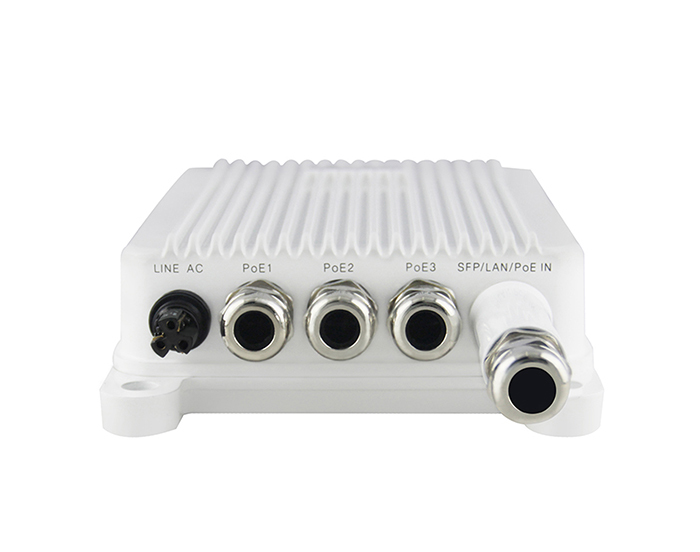

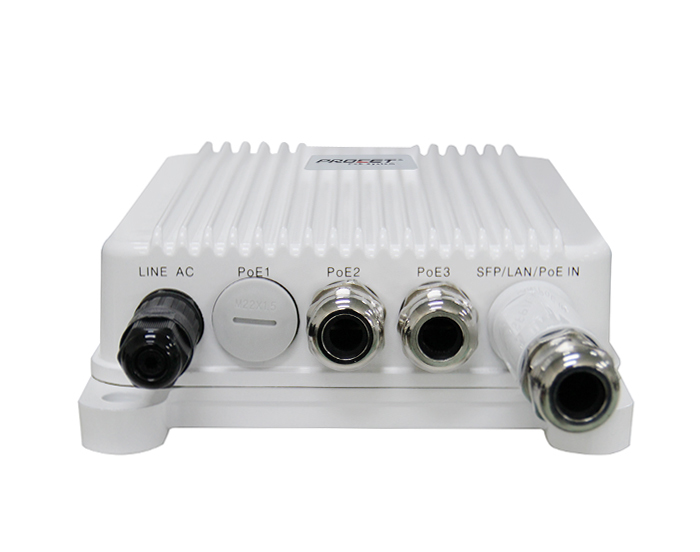

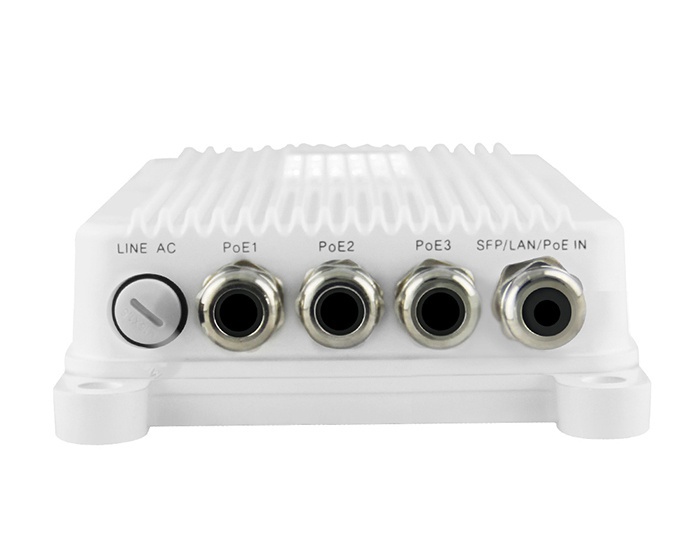

PT-POS401GWR-OT is an outdoor IP67 rated 4-port high power PoE switch speciall designed for exterior, complex backhaul and networking applications. Enclosed in an waterproof Reflective Aluminum alloy case with a sealing that gasket passes tension, bearing, corrosion,and aging test. Pass salt spray resistance test.

It works with a wide input voltage of 100-240Vac and operates from -40℃ to 65℃. This model includes 1 Gigabit copper Ethernet data uplink, 1 AC input screw terminal connector and 3 PoE ports, providing 60W each port power for remote PDs over 4 pairs output at 10/100/1000Mbps of data speed. Each PoE port is compliant with PoE++ standard and backward compatible with 802.3af/at. Such as power for Pan Tilt Zoom cameras/IP cameras, VoIP video phones, building/access control equipment, WiFi access devices, POS terminals, thin clients, kiosks, and IP print servers.

Build-in detecting chip inside, which will Auto-negotiating IEEE802.3af/at/PoE++ PDs, no worry about powering a non-PoE device.The effective distance is 100 meters over Cat5e/Cat6 cables. Easily to install with installation kit (PT-POT-MBK Sold separately).The IP67 housing does not need to be pened

and provides a quick,seamless installation.

PT-POS401GR-OT is a 4-ports outdoor use PoE switch with 2 Pair PoE,each port  up to 30 watts of power at 55 VDC at 0.55 amp.It has sealing gasket inside which passed extension, bearing, corrosion, aging test. 4 ports includ 1 LAN port and 3 PoE output ports with 6KV (10/700us) surge protection.

It suppots 10/100/1000-Mbps of data speed. It is compliant with IEEE802.3af/at standard equipments, such as wireless APs, network camera, VoIP phone, base stations, and other high power Ethernet terminals.It has detection chip inside, which will detect and classify PD before powering it. It will not provide power until a standard-compliant PD is detected.

Enclosed in an IP66  waterproof metal casing, designed for outdoor installation with installation kit PT-POT-MBK, no need to open the equipment. It operates with input voltage of 100-240Vdc, 50 or 60 Hz. The effective distance limitation of 100 meters over Cat5e/Cat6 cables can be extended with the PT-PEX-01G-OT(Outdoor or Indoor PoE Extender).
