PT-PSE108GBR-OT belongs to 90-160W PoE Injector（Outdoor PoE Injector,）,with 4 Pair PoE up to 95 watts of power at 55 VDC at 1.75 amp.
Designed for the PoE++ powered 95W PoE Powered Devices (PDs), such as wireless APs, network camera, VoIP phone, base stations, and other high power Ethernet terminals. It is also compatible and safe to use with any IEEE802.3af/at compliant terminals, It supports 10/100/1000 Mbps of data rates.  It has a detection chip inside, which will detect and classify PD before powering it. It will not apply power until a standard-compliant PD is detected.

Enclosed in an IP67 fire retardant metal case, designed for outdoor installation with installation kit PT-POT-MBK, no need to open the equipment. It operates with an input voltage of 100-240 Vac, 50 or 60 Hz. The effective distance limitation of 100 meters over Cat5e/Cat6 cables.

PT-PSE108GR-OT Industrial Outdoor PoE Injector with 2 Pair PoE up to 30 watts of power at 55 VDC at 0.55 amp.Designed for the PoE+ powered 30W PoE Powered Devices (PDs), such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks, It supports 10/100/1000Mbps of data rates.

Fully comply with IEEE802.3at and remains compatible with any IEEE802.3af compliant devices. Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non PoE device.Enclosed in an IP67, IEC60529, NEMA 250 fire retardant metal case, designed for outdoor installation with Pole-mounted.

 It operates with a wide input voltage of 100-240Vac, 50 or 60 Hz. The effective distance limitation of 100 meters over Cat5e/Cat6 cables , It is easy to install with installation kit PT-POT-MBK, no need to open equipment.can be extended with the PT-PEX-01G-OT(Outdoor or Indoor PoE Extender)

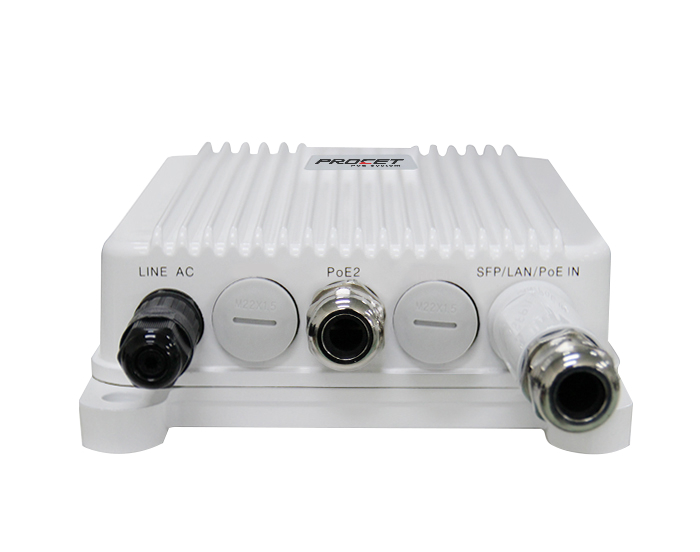

Procet Industrial Gigabit 10G Fiber PoE Injector, Waterproof Outdoor Use. 802.3af/at/PoE++ Standard PoE.  Input 100-240Vac 2.0A, Output 55Vdc 1750mA.  6kv Surge Protection, Working Temperature from -40°C-65°C.

Enclosed in an IP67 reflective Aluminum case with sealing that gasket passes tension, bearing, corrosion, and aging test for IP67 applications. Pass salt spray resistance test Including 1 AC input port, 1 SFP+ port at 10GBASE-X, and 1 PoE output ports with 6KV (10/700us)  surge protection.

Complies with PoE++ and any IEEE802.3af/at compliant devices, such as Wi-fi 6, wireless APs, Microwave radio, IoT application, door locks, IP Cameras, information kiosks, and other PoE devices. Operates under -40℃ to +65℃. Easily to install with installation kit (sold separately), no need to open the equipment. Specially designed for exterior, complex backhaul and networking applications, special scenarios, like highway side, exurb, etc.

PT-PSE108GR-OT-DE is an outdoor rated PoE Adapter specially designed for exterior, complex back_x0002_haul and networking applications. Enclosed in an IP67 Reflective Aluminum alloy case with a sealing that gasket passes tension, bearing, corrosion,and aging test for IP67 applications

After negotiating 802.3at standard PD, the single PoE output port delivers 55Vdc, 0.55A up to 30W power with 6KV surge protection for remote PDs over 2 Pair at 10/100/1000Mbps data rates. It works with a wide input voltage of 12-55Vdc and operates under -40℃ to +65℃. It fully complies with IEEE802.3at and backward compatible to IEEE 802.3af PoE standard, such as IP Cameras, wireless APs, Microwave radio, IoT application and other PoE+ power PoE devices.

For planning purposes, the effective distance is 100 meters over Cat5e/Cat6 cables. Easily to install with mounting holes, no need to open the equipment. With Stainless Steel Cable ties can be fixed on a Pole.

PT-PSE108GXR-OT is a single port PoE Injector with waterproof metal casing. It has sealing gasket inside which passed extension, bearing, corrosion, aging test. It provides 55Vdc, 2.2A power for remote PDs over 4 pairs output with 6KV (10/700us) surge protection. It supports 10/100/1000Mbps of data speed. It works for 120W PoE PDs, such as wireless APs, network camera, Microwave Radio, Base Stations, and other high power Ethernet terminals. It is also compatible and safe to use with any IEEE802.3af/at/bt compliant terminals.

This PoE injector is designed for outdoor use, which works with 100-240Vac input and operates under -40℃ to +65℃ full loading. It has detection chip inside, which will detect and classify PD before powering it. It will not provide power until a standard-compliant PD is detected.The effective distance is 100 meters over Cat5e/Cat6 cables. It is specially suitable for working in complex power situations.It is easy to install with installation kit PT-POT-MBK, no need to open equipment.

PT-PSE108GBTR-OT-10DE belongs to 95W PoE Injector（Outdoor PoE Injector）, is a single port midspan Injector with 4 Pair PoE up to 95 watts of power at 55 VDC at 1.75 amp.

It supports 10/100/1000Mbps/10GBps of data rates. Fully comply with IEEE802.3bt and remains compatible with any IEEE802.3af/at compliant devices. Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non-PoE device.

Enclosed in an IP66 fire retardant metal case, designed for outdoor installation with installation kit PT-POT-MBK, no need to open the equipment. It operates with an input voltage of 100-240 Vac. The effective distance limitation of 100 meters over Cat5e/Cat6 cables.

PT-PSE108GBR-OT-DE is an outdoor rated PoE injector/midspan specially designed for exterior, complex back_x0002_haul and networking applications. Enclosed in an IP67 Reflective Aluminum alloy case with a sealing that gasket passes tension, bearing, corrosion,and aging test for IP67 applications.

After negotiating 802.3bt standard PD, the single PoE output port delivers 55Vdc, 1.75A up to 95W power with 6KV surge protection for remote PDs over full 4 Pair at 10/100/1000Mbps data rates. It works with a wide input voltage of 12-55Vdc and operates under -40℃ to +65℃. It fully complies with IEEE802.3bt and backward compatible to IEEE 802.3af/at PoE standard, such as IP Cameras, wireless APs, Microwave radio, IoT application and other PoE++ power PoE devices.

For planning purposes, the effective distance is 100 meters over Cat5e/Cat6 cables. Easily to install with mounting holes, no need to open the equipment. With Stainless Steel Cable ties can be fixed on a Pole.

PT-PSE208GRW-OT  Outdoor Waterproof PoE Injector with 2 Pair PoE up to 30 watts of power at 55Vdc at 0.55 amp.Designed for the PoE+ powered 30W PoE Powered Devices (PDs), such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks, It supports 10/100/1000Mbps of data rates.

Fully comply with IEEE802.3at and remains compatible with any IEEE802.3af compliant devices.

Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non PoE device.Enclosed in an IP66 fire retardant metal case, designed for outdoor installation with Pole-mounted. It operates with a wide input voltage of 100-240Vac, 50 or 60 Hz. The effective distance limitation of 100 meters over Cat5e/Cat6 cables can be extended with the PT-PEX-01G-OT(Outdoor or Indoor PoE Extender)

PT-PSE108GWBR-OT is an outdoor PoE injector specially designed for exterior, complex backhaul and networking applications. Enclosed in a IP67 Reflective metal case with a sealing that gasket passes tension, bearing, corrosion, and aging test for IP67 applications.

After negotiating IEEE802.3bt standard PoE, the single PoE output port delivers 55Vdc, 1.1A up to 60W power with 6KV surge protection for remote PDs over full 4 Pair at 10/100/1000Mbps data rates.

It works with a wide input voltage of 100-240VAC with 6KV surge protection, 50 or 60 Hz and operates under -40℃ to +65℃. It fully complies with IEEE802.3bt and remains compatible with any IEEE802.3af/at compliant devices, such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks.

For planning purposes, the effective distance is 100 meters over Cat5e/Cat6 cables. It is easy to install with installation kit PT-POT-MBK(Sold separatly), no need to open the equipment.
